Locating Electrical Power Sockets: A Comprehensive Guide to Electrical Outlets in Remodeling

The proper placement of electrical outlets is essential to meeting accessibility, safety, and functional criteria for any given space. Outlets ought to be installed according to the actual intended use of the area and local electrical codes so that they remain safe and compliant with the rules. For example, the building code requires outlets to be placed along kitchen countertops at intervals of no more than 4 feet so that extension cords need not be used. Having sufficient outlets in the living room and office would allow gamers and employees not to have to clump everything onto one circuit; outlets having additional features, such as a USB or even smart technology compatibility, can increasingly add to their usefulness in the room. If your outlet planning is good and by regulations, you will have outlets well placed to fit both present and future needs.

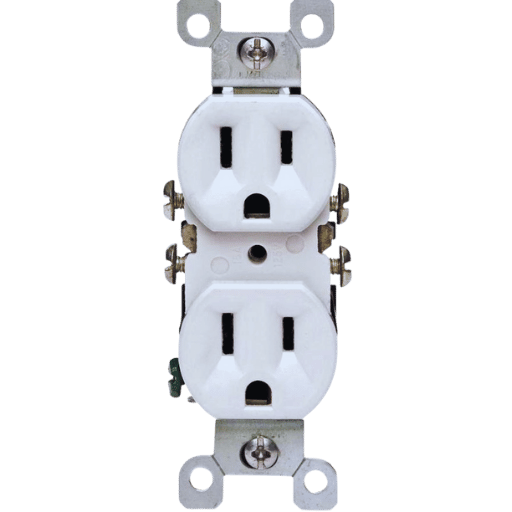

Understanding Electrical Outlets

A good placement of electrical outlets ensures accessibility, safety, and functionality within any space. Outlets should be positioned on the basis of how an area is used, while observing the local electrical codes for safety and compliance. For instance, outlets in a kitchen are required to be installed along the countertops at intervals no longer than 4 feet to avoid the use of extension cords. The living room and office area, on the other hand, ought to have a sufficient number of outlets for electronic devices without overloading one circuit. If one can incorporate outlets with other features such as USB ports or smart home technology compatibility, then the space utility is only enhanced. Proper planning and observance of relevant rules would ensure that outlet placement is properly done for both present and future needs.

Types of Electrical Outlets

These electrical outlet types include standard, GFCI, and AFCI, tamper-resistant, USB, smart, weather-resistant, high-current, specialty, split-circuit, and spinning-outlets.

Type	Feature	Use	Location
Standard	Basic 3-prong	General use	Indoors
GFCI	Shock protection	Wet areas	Bathrooms, kitchens
AFCI	Fire prevention	Arc faults	Bedrooms, living rooms
Tamper-Resistant	Child safety	Prevents insertion	Homes with children
USB	USB charging	Electronics	Bedrooms, offices
Smart	Remote control	Automation	Smart homes
Weather-Resistant	Moisture-proof	Outdoor use	Patios, decks
High-Current	20-50 amps	Heavy appliances	Kitchens, laundry
Specialty	Unique functions	Specific devices	Varies
Split-Circuit	Dual circuits	Power management	Bedrooms, offices
Rotating	Adjustable plugs	Tight spaces	Kitchens, offices

Common Electrical Outlet Sizes

Type	Amps	Use	Feature	Location
Standard	15A	General devices	Basic	Indoors
Heavy-Duty	20A	Large appliances	Horizontal slot	Indoors
GFCI	15A/20A	Wet areas	Shock protection	Bathrooms
AFCI	15A/20A	Fire prevention	Arc fault safety	Bedrooms
Tamper-Resist	15A/20A	Child safety	Block mechanism	Indoors
Weather-Resist	15A/20A	Outdoor use	Moisture-proof	Outdoors

Importance of Proper Socket Placement

Proper socket placement is crucial for both safety and functionality within any space. Strategically located sockets ensure convenient access to power sources for various devices, reducing the need for dangerous extension cords or overloading circuits. Proper placement in wet areas, such as bathrooms and kitchens, requires GFCI sockets to prevent electrical shock. Similarly, AFCI sockets in bedrooms enhance fire safety by detecting arc faults. For outdoor and moisture-prone locations, weather-resistant sockets ensure durability and safe operation. Following recommendations for placement not only improves usability but also aligns with electrical safety standards, minimizing the risk of accidents or malfunctions.

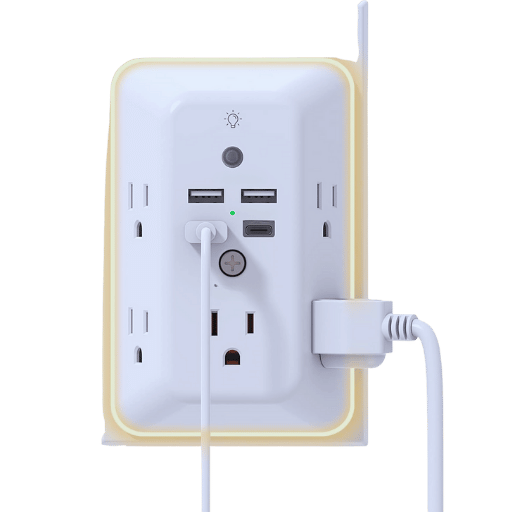

Locating Electrical Outlets in Your Home

Using a Stud Finder for Socket Location

It is crucial to seek an accurate wall stud locator, especially when installing an electrical outlet or modifying one. Stud finders detect density changes in walls to locate the precise location of studs, which sometimes contain electrical wiring. Normally, electrical outlets are mounted along the edges of studs for adequate support; hence, the stud finder is a reliable way to determine where are the best spots.

Users often ask if a stud finder also detects wire. While most stud finders are not created for that purpose, advanced models with wire sensors will alert the user to the presence of live wires behind walls. On the other hand, for greater precision and safety, wire detection should be done using tools designed explicitly for it or under the guidance of a professional electrician. Thus, using a mix of tools and knowledge will ensure that locating and installing electrical sockets become safer and more efficient tasks.

Identifying Existing Electrical Lines

In electric line identifying, a combination of methods serves precision and safety. Modern stud finders with electrical properties can be used to detect live wires in walls to avoid unintentional cuts during renovation. The use of non-contact voltage testers also aids in quickly and reliably identifying whether a particular wire carries voltage.

Efficient wire detection might require more than merely the right tools; it also involves planning and safety requirements. Also, on the way, it may be helpful to have building blueprints or schematics on hand to determine likely wire pathways. A good practice would also include keeping abreast of changes in electrical code requirements and seeking professional resource recommendations online. A combination of practical approaches, modern equipment, and thorough research is best for working alongside existing electrical lines.

Tips for Locating Outlets in Kitchens and Bathrooms

• Identifying Appliance Zones: First, locate the major appliance areas, for outlets are usually situated nearby to power appliances in kitchens or appliances like hair dryers, electric razors, and electric toothbrush chargers in bathrooms.
• Inspect GFCI Outlet Requirements: Areas near water sources require GFCI outlets. In both kitchens and bathrooms, look around sinks, bathtubs, and countertops for these specialized outlets.
• Inspect Under Cabinets and Counters: Outlets may be installed under cabinets or countertops, especially in kitchens, so that the outlets may be used for under-cabinet lighting or small appliances.
• Examine Backsplashes and Walls: Outlets in contemporary kitchens are often installed in backsplashes, whereas in bathrooms, they are tucked at a reachable height on walls around the sink.
• Check Existing Circuit Layouts: If any electrical diagrams are available for reference, use them, or else use a circuit tracer to pick up any hidden wiring that may indicate outlet locations.
• Focus on Code-Based Spacing: Often, national building codes specify outlet spacing. For example, outlets must be installed at intervals not exceeding 4 feet along kitchen countertops. Use these guidelines to help locate existing outlets.
• Look Inside Cabinets and Utility Drawers: Hidden outlets are sometimes concealed in cabinets or drawers for charging or to keep appliances plugged in out of sight.
• Think About Modern Conveniences: Besides outlets mounted in cabinetry, you might find a few embedded in furniture or in various other smart home installations in remodeled spaces.

Power Needs and Socket Considerations

Assessing Your Power Needs

When I want to determine power needs, I look at the appliances and devices I usually use, paying attention to their wattage requirements. I analyze the outlets I have in total and the number that I need so that I can avoid circuit overloads or excessive reliance on power strips. Very specific needs that might require features like charging stations or high-powered equipment are assessed to see if specific areas of the home will require dedicated circuits or more outlets. That makes sure the power setup will be safe and adequate for everyday use.

Choosing Between 15-amp and 20-amp Outlets

When choosing between a 15 and a 20-amp outlet, the first consideration is the electrical demand of the device that is to be powered. A 15-amp outlet produces a working voltage for standard household equipment such as lamps, televisions, or small appliances. A 20-amp outlet can accommodate more power-hungry applications like heavy kitchen appliances, power tools, or huge air conditioners. The outlet amperage must be identical to the circuit breaker amperage for the system to operate correctly and safely. When the power requirements are unclear to you, it is always a good idea to consult an electrician.

Challenges During Installation

Common Issues When Installing Outlets

Breaker trips, GFCI trips, burning out of outlets, old receptacles, loose wiring, and overheating, followed by irregular power supply, are some common problems when installing outlets.

Key Point	Description
Tripped Breaker	Circuit overload causes the breaker to shut off power.
GFCI Trips	Ground Fault Circuit Interrupters turn off due to power surges.
Burned Out	Outlets overheat, spark, or show black marks, indicating fire hazards.
Aged Receptacles	Old outlets lose grip on plugs, increasing shock risks.
Loose Wiring	Disconnected or damaged wires prevent proper power flow.
Overheating	Loose connections or high loads cause outlets to become hot.
Inconsistent Power	Aging or faulty outlets result in an unstable electricity supply.

Dealing with Electrical Codes and Regulations

Using electrical power for any purpose means there has to be a priority for safety: accidents could injure someone or damage property. Through exercising proper precaution, there is a very small chance that an unforeseen incident could occur. Key safety considerations, per recent guidelines and data, include the following:

1. Wear Personal Protective Equipment

When working near electrical circuits, one should always wear PPE such as insulated gloves, safety goggles, and flame-resistant clothing. According to OSHA, using PPE reduces electrical burns, shocks, and injuries caused by arc flashes.

2. Never Work on Energized Circuits

Switching the power off, the first most important thing one should do, has to be done, and then check with an operand voltage tester that the circuit is de-energized. Human error is one of the leading causes of electrical injuries; hence, manually checking before handling wires or components is crucial.

3. Avoid Working in Water or Damp Areas

Water or any wet electrical work increases the risk of electrocution. Installing GFCIs in these circumstances is helpful as these devices immediately cut the power if they detect any imbalance in the current. It has been proven that GFCIs can prevent most injuries caused by accidental shocks when moisture is involved.

4. Observe Load Capacities

Overloaded circuits or power outlets are widely recognized as being responsible for electrical fires. Make sure the amperage of the circuit satisfies the load demand, no matter what. Also, power strips should never be joined together in daisy chains. According to the National Fire Protection Association (NFPA), electrical distribution systems rank among the top causes of house fires.

5. Regular Inspection of Tools and Equipment

Never use power cords, tools, or equipment with any defects or damaged areas. An inspection or maintenance program will stop potential failure points from causing accidents and will support and strengthen the safety regulations.

6. Know the Electrical Codes and Standards

Always comply with local and national electrical codes (such as the NEC in the United States). These codes aim to standardize safety practices; hence, non-application can be cited as long-term risks. For instance, in outdated reinforcing means, wiring systems have been commonly cited in electrical hazards by NEMA.

7. Train the Workers Properly

Proper training should be given to workers on electrical safety to be able to identify, address, and reduce hazards. Industry safety report data show that personnel who are better trained experience fewer workplace incidents as compared to those who have received minimal training on the said topic.

Electrical safety cannot be compromised in either a residential or commercial, or industrial environment. Implementing and understanding these considerations shall uphold a safer work environment and comply with modern safety standards.

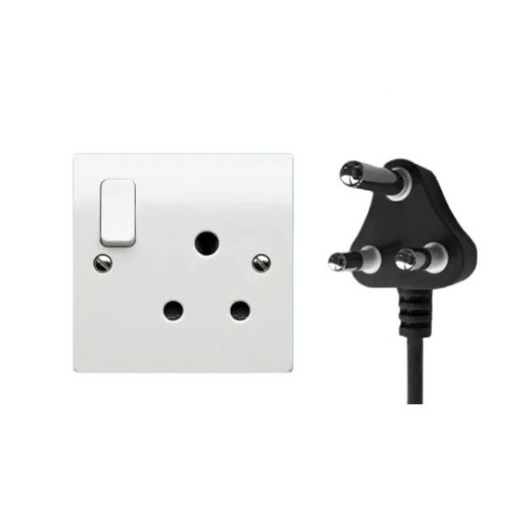

Best Practices for Outlet Placement

Strategic Placement in Kitchens

While planning outlet placement for kitchens, it is advised to place outlets above counters at intervals no greater than 4 feet, according to the National Electrical Code (NEC). Outlets should also be located at most 2 feet away from any countertop edge to enable easy accessibility. Moreover, outlets close to sinks or some other water sources should be equipped with GFCIs for safety reasons. Well-placed outlets will provide easy access to plug appliances while being safe from a regulatory point of view.

Proper Placement in Bathrooms

The outdoor outlet placement requires one outlet within 3 feet of any edge of the sink, as per NEC. Ground-Fault Circuit Interrupters, or GFCIs, must be installed on outlets in a bathroom since the environment is prone to moisture and hence risky for electric shock. Nailing it with outlets positioned at heights of around 15 to 20 inches from the edge of the countertop is convenient; hence, it serves outlet-grooming appliances while affording safety and compliance with the codes.

Considerations for Commercial Spaces

Safety regulations and functionality are the bases of concern when designing and planning an electrical layout in commercial establishments. According to recent information, it is most important not to overlook the provision of a decent number of outlets to plug in machinery, charging stations, or other high-scale electric requirements. The positioning of these outlets must be such that they promote functional efficiency and yet abide by the National Electrical Code (NEC).

Another measure to restrict electrical shock should include GFCI outlets for such a property where a large number of people come into and use the outlets. In areas such as kitchens and restrooms, where water exposure or moisture could be present, this is a must-have feature in an outlet. Moreover, businesses should think about the future electrical requirements that may be needed and allow for these in their planning, such as adding USB outlets or smart power management systems to keep up with advancing technology. Meanwhile, commercial spaces can thus achieve both compliance with safety measures and optimization of functionality.

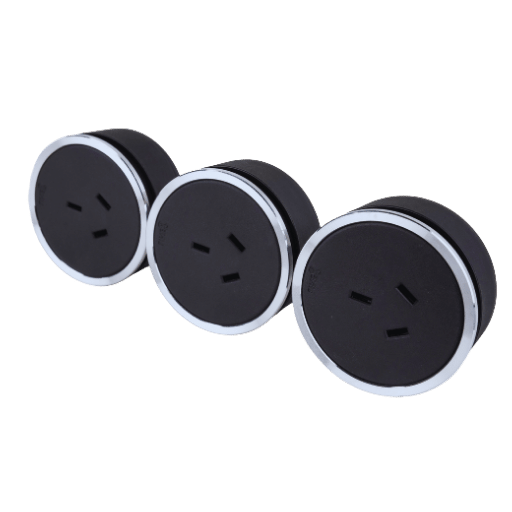

Frequently Asked Questions (FAQs)

Q: How to place outlets during a remodeling?

A: Outlets should be added during the remodeling to accommodate your electrical needs. An outlet placed strategically would be the best way to allow easy access to appliances and electronic devices. The National Electrical Code requires outlets should be placed every 12 feet throughout the living area and within 6 feet of any doorway. GFCI outlets should also be considered for countertops and in any other areas where wet conditions exist, such as the kitchen and bathrooms.

Q: How is the power source determined for new outlets?

A: The power source is determined for new outlets by getting to know the layout of existing circuits. A licensed electrician can verify that your new outlets shall draw on an acceptable power source without overloading any circuits. Your electrician would evaluate your home’s electrical energy distribution and recommend suitable options for outlet add-ons that comply with local building regulations.

Q: What are GFCI outlets versus standard receptacles?

A: GFCI outlets protect against shock hazards by deactivating the supply in an unbalanced flow of current. The GFCI outlets are required in wet places, e.g., the kitchen and bathrooms. Normal receptacles do not provide this kind of protection and are suitable for areas where no moisture is present. GFCI outlets should be considered an absolute safe option for any remodeling involving water.

Q: How are outlets placed to prevent hazards?

A: For interference with danger from water hazards, outlet placement should take place far from any water sources, such as sinks and bathtubs. In case of any outlet, it is better to use the covers to avoid an accident of touching the potential danger from the plugs. Outlets should be placed with consideration so as not to put power strips and extension cords on the floor that could be tripping hazards and make outlets difficult to reach.

Q: What are the advantages of USB outlets?

A: USB outlets allow electronic devices to be charged without the need for an adapter. They are especially useful in areas prone to multiple devices requiring charging capacity, such as living rooms and bedrooms. USB outlet installation can assist in keeping your space neat by reducing charging cords and plugs scattered here and there, thus creating a working environment that meets the requisite electrical needs of your household.

Q: Can outlets be hidden so they are barely noticeable?

A: Hiding outlets helps to elevate the look of a space while still being functional. Think of using flush outlets that are almost level with the wall, or placing the outlets horizontally to blend in with the furniture. Furthermore, you can tile or paint outlet covers to correspond with your walls or decor, thus letting the outlets fade into the background when they are not in use. This will allow you to maintain an organized environment without sacrificing accessibility.

Q: What should I keep in mind concerning electrical planning for new outlets?

A: Electrical planning for new outlets means analyzing your present layout and determining your electrical needs. Make sure to scope out enough outlets to include all of your small appliances, gadgets, and even those for future use. It is in your best interest to consult a licensed electrician for help in preparing a layout compliant with national and local building codes that takes into consideration all safety and functional aspects.

Q: What should I keep in mind when installing an outdoor outlet?

A: Regarding outdoor outlets, it is essential to use weather-resistant covers and GFCIs that will ensure protection against moisture and any electrical shocks. Position outdoor outlets in places that are free from direct exposure to rain and snow, preferably on either side of the sink or any other water source. To ensure that your outdoor outlets are in accordance with building regulations, so they provide power access to outdoor appliances and lighting in a safer and reliable way.

Reference Sources

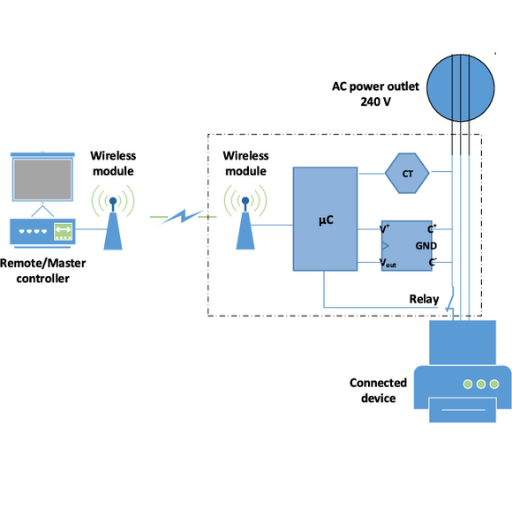

1. Improved Smart Power Socket to Monitor and Control Electrical Home Appliances
