RV Power Pedestals
Top RV Power Pedestals Manufacturer and Supplier in China
Welcome to the perfect solution to run RV systems with convenience and reliability. Our RV Power Pedestals are designed to deliver secure, reliable, and long-lasting power connections for RV enthusiasts, campgrounds, and similar recreational facilities.
INSTANT QUOTE

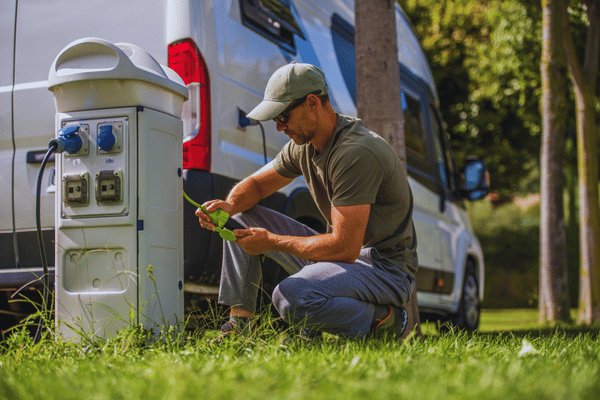

What Are RV Power Pedestals?
The essential electrical infrastructure for modern campgrounds and RV parks
An RV power pedestal is a service post designed to connect recreational vehicles to electrical service, ensuring reliable power delivery. This is mostly used at campgrounds, RV parks, mobile home communities, and personal properties.
Several outlet configurations are typically suitable for modern RV park electrical equipment, allowing them to serve different RV types. Examples include small travel trailers requiring 30-amp service and large Class A motorhomes requiring 50-amp service. Many of the units have GFCI protection, LED lighting, and a single water hookup, providing a complete utility service.
Industry Scale
There are more than 16,200 privately-owned RV parks and over 1.3 million campsites in the United States. With the RV industry expanding by about 8.37% annually, demand for well-built campground electrical systems is increasing at an unprecedented scale.
Key Components of an RV Power Pedestal
The RV electrical pedestal comprises key components that work together to provide safe, code-compliant power:
Circuit Breakers
Overcurrent Protection
Receptacles
50A/30A/20A Outlets
Metering (Optional)
kWh Usage Tracking
Enclosure
NEMA 3R Rated
Lighting
LED with Photocell
Loop Feed Lugs
Up to 350 MCM Wire
Key Features of RV Power Pedestals
Durable Construction:Designed using sturdy materials capable of withstanding corrosive environments (Noryl or galvanised steel) outside. Enclosures that are Rainresistant (NEMA 3R) can still perform reliably in all types of weather.
Innovative Design:Designed so that all wires and cables are secured completely within the unit; this allows for a modern and neat look. The use of cables and hoses is managed using Alumnimum; these manages are in order, and do not create clutter when establishing a camp.
User Friendly:Easy installation and basic maintenance as a result of easy to wire and access. There are many choices for installation that are suitable for different types of layouts for campgrounds.
Energy Efficiency:There are options for metering to better understand how energy is being consumed, enable you to use and optimise energy, ultimately leading to decreased costs, and impact on the environment.
Additional Utilities:There are multiple integrated water fill options, providing convenience to campers. Standard colour is Sandelwood and there are options available for custom colours for a match to your personal taste.
Types of RV Power Pedestals
Understanding the different configurations to match your specific requirements
By Installation Method
The decision to choose proper installation type for electrical supplies in an RV parking largely depends on site conditions, budget constraints, and future expansion plans:
Direct Burial Pedestals
Underground installation 24-inch burial depth is recommended. Very popular for new construction, direct burial RV pedestals are rendered for secure, permanent installation with clean aesthetics.
Pad Mount Pedestals
Mounting brackets are used to mount the RV Pedestals on concrete pads. If the site has rocky soil and underground burial is not an option, then it is possible to install the pedestals. The access is completely free for maintenance.
Surface Mount Units
Surface-mounting power outlets are screwed directly onto walls, posts, or any other supporting structures. Great for residential use, temporary fixes, or adaptations for already-designed facilities.
By Metering Option
One of the most critical choices that camp managers have to make is whether to get metered or non-metered power pedestals:
| Feature | Metered Pedestals | Unmetered Pedestals |
|---|---|---|
| Usage Tracking | Individual site kWh monitoring | No usage tracking |
| Billing Method | Pay-per-use billing possible | Flat rate included in site fee |
| Initial Cost | Higher ($800-$1,500+) | Lower ($400-$800) |
| Best For | Long-term stays, seasonal parks Recommended | Short-term stays, budget projects |
| Meter Types | Ring-type or Ringless socket | N/A |
| ROI Potential | Significant energy cost recovery | Simpler operations |
💡 Pro Tip: Metered vs Unmetered Decision
RV Parks with an average stay of 7 days or more normally find a good ROI when meters for the pedestals are put in place. For parks that are largely in the business of catering to overnight guests, it's simpler to run completely unmetered with electricity costs included in the nightly rate.
By Power Configuration
The 50/30/20 amp RV pedestal set up has virtually become the standard and is able to accommodate nearly all types of RV:
| Amperage | Voltage | Receptacle Type | Typical Use |
|---|---|---|---|
| 50 Amp Most Popular | 120/240V | NEMA 14-50R | Large motorhomes, 5th wheels with 2+ A/C units |
| 30 Amp | 120V | NEMA TT-30R | Travel trailers, smaller motorhomes |
| 20 Amp | 120V | NEMA 5-20R (GFCI) | Standard household devices, tent campers |
Common Challenges & Our Solutions of RV Power Pedestals
Addressing the real issues faced by RV park operators and contractors
NEC Compliance Confusion
The Problem
Many park operators and technicians struggle with interpreting NEC Article 551 requirements regarding RV site electrical systems. Non-compliant installations risk wasted costs rework, safety hazards, and potential failed inspections.
Our Solution
- All pedestals are UL/ETL Listed for NEC compliance
- Free technical documentation and installation guides
- Dedicated support team for code questions
- Updated products meeting 2026 weather-resistant requirements
High Upgrade Costs
The Problem
Upgrading aged campground electrical facilities, required significant capital outlay from the operators. Because of these large investments, the information operators would sometimes decide to put off perennial electrical supplies and endangering guest satisfaction and safety.
Our Solution
- Wholesale pricing with volume discounts up to 30%
- Phased upgrade planning support
- ROI calculators to justify investment
- Direct factory pricing—no distributor markup
Product Selection Difficulty
The Problem
Choosing metered versus unmetered, different amp configurations, and installation types can be confusing. Poor choices in these can lead to operational inefficiencies and expensive replacements.
Our Solution
- Free consultation with experienced engineers
- Comprehensive product selection guides
- Site-specific recommendations
- Sample units available for evaluation
Supplier Trust Issues
The Problem
Concern about the quality of products, customer care, and reliability as they turn to new suppliers is widespread. Many buyers have dealt with issues related to inferior products or inadequate warranty support.
Our Solution
- 15+ years manufacturing experience
- All products UL/ETL certified with documentation
- Comprehensive warranty programs
- Reference customers and case studies available
Long Lead Times
The Problem
Building seasons and urgent project timelines necessitate reliable delivery schedules. A delay in shipment of the RV pedestal has resulted in the campground missing the opening schedule.
Our Solution
- Standard configurations in stock
- 2-4 week lead time on most orders
- Expedited shipping options available
- Proactive order tracking and communication
Custom Specification Needs
The Problem
A standard product does not always address the unique projects demanding specific solutions. In this regard, utility company specifications, local codes, or specific site conditions may require modifications like custom configurations.
Our Solution
- Full OEM customization capabilities
- Custom branding and private label options
- Engineering support for unique requirements
- Prototype development for new designs
Industries We Serve
Common Applications for RV Pedestal

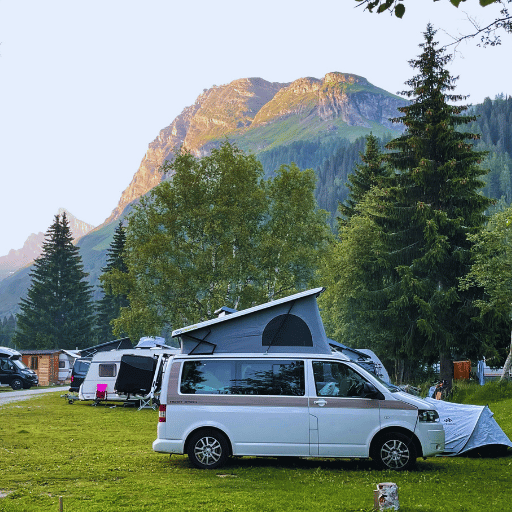

Campgrounds & RV Parks
Providing our guests a secure and energy efficient accommodation.
Private RV Storage
Ensuring that the RVs are charged and ready to go on a trip.
Outdoor Events
Better energy services for RVs who park at events, shows and celebrations.
Remote Locations
Appropriate energy sources for either a no-connection-off grid or a private exclusively camping experience.
Best RV Power Pedestal for Sale
Get the best RV power pedestals that are reliable and won’t disappoint. They are designed for outdoor use with an added layer of safety. Order now!

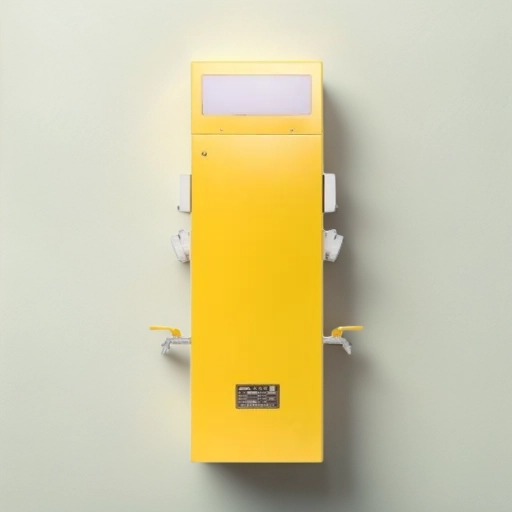

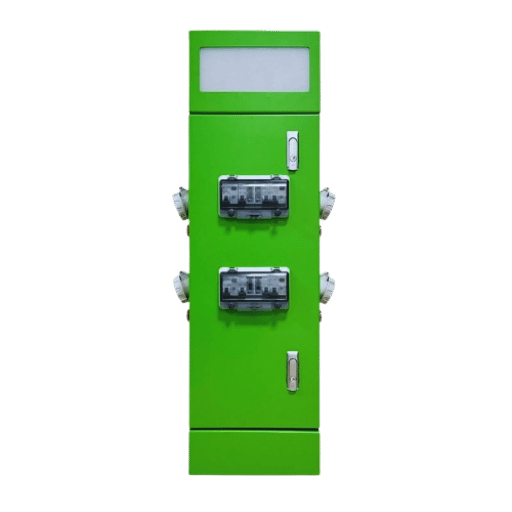

GRES1003020D-R
The GRES1003020D-R is a stainless steel power pedestal designed for campgrounds. The power pedestal is equipped with four outlets, an IP67 protection level, and anti-theft features.
Read More

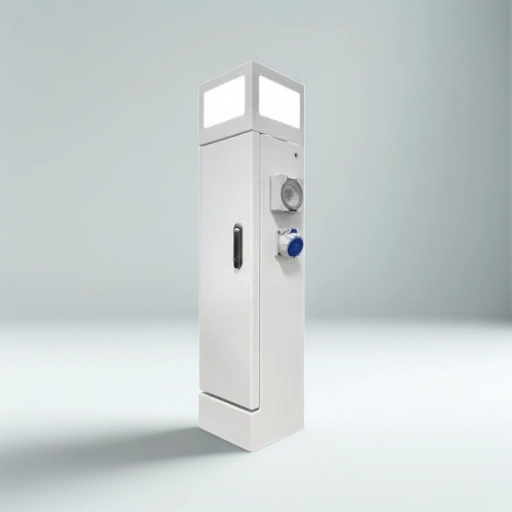

GRES1002020D-R
The GRES1002020D-R is a compact stainless steel pedestal designed for an RV campsite, featuring 4 socket outlets, overcurrent protection, and LED illumination.
Read More
RV Power Pedestals Technical Specifications
| Attribute | GRES1003020D-R | GRES1002020D-R |
|---|---|---|
| Product Size | 1000mm x 300mm x 200mm (39.37" x 11.8" x 7.9") | 1000mm x 200mm x 200mm (39.37" x 7.9" x 7.9") |
| Rated Voltage | 400V, 380V, 230V | 400V, 380V, 230V, 110V |
| Rated Current | 63Amp, 32Amp, 16Amp | 125Amp, 63Amp, 32Amp, 16Amp |
| Application | Commercial Buildings, Campuses, Airports & Transit Hubs, Public Parks | Commercial Buildings, Campuses, Airports & Transit Hubs, Public Parks |
| Place of Origin | Zhejiang, China | Zhejiang, China |
| Brand Name | GEEYA Intelligent | GEEYA Intelligent |
| Model Number | GRES1003020D-R | GRES1002020D-R |
| AC Outlets Quantity | 4 Outlets | 4 Outlets |
| Material | Stainless Steel | Stainless Steel |
| Grounding | Standard Grounding | Standard Grounding |
| IP Level | IP 67 | IP 66, IP 67 |
| Color | Green | White |
| Customized | Yes | Yes |

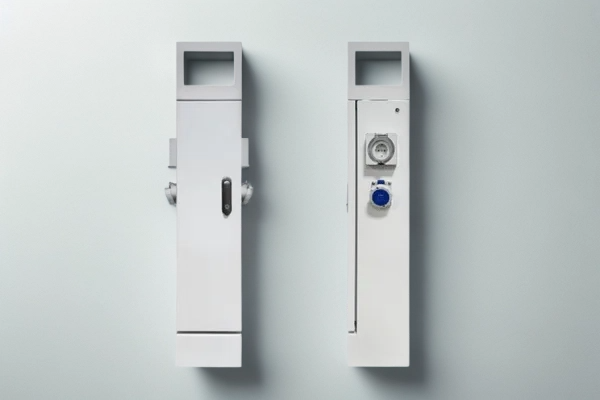

why choose our RV Power Pedestals

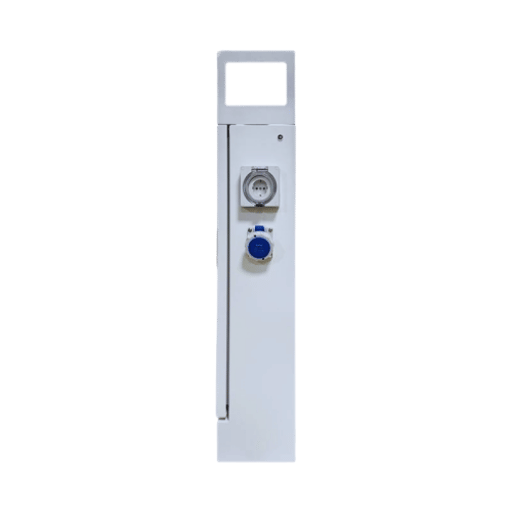

Expert Guides to Power Pedestal RV
What Our Client Says
Have hundreds of RV park owners who have transformed their facilities with Jiya Intelligent's RV Power Pedestals. Hear from our acclaimed customers:
"The safety features prevented a huge surge from killing my RV appliances. I would recommend this to anyone who values their electronics!"
Jim
Road Enthusiast
"Good for all weather! I camped in extreme rain and heat, and this pedestal never failed me. Setup was easy, even if you're buying your first one."
Amanda
Weekend Camper
Related Products provided by Jiya Intelligent
Latest Blog Posts about RV Power Pedestals
Find out how to choose, use, and maintain RV power pedestals with our expert tips. Create a more reliable power solution for your camping would-be an enhancement!
Across North America and Europe marina operators face familiar challenges: humid, salt-laden air corrodes equipment, limited charging ports delay boat operations, and manual management drains time and resources. Jiya...
Electric vehicles (EVs) are thus considered an imperative step toward a greener and more sustainable future. With this shift, the presence of EV charging stations has become increasingly relevant,...
Fast chargers are becoming the foundation of the new-age EV infrastructure, providing quick and easy energy to keep drivers moving. However, with the evolution of technology and the expansion...
As far as the extent to which the garden remains vibrant and the volume of work done in clearing the area is concerned, outdoor taps and the garden hose...
In case one is about to use high-capacity tools or needs to charge an RV from an electricity outlet while going for a campaign, let’s say for a concert,...
When discussing the quality of the system, particularly under challenging circumstances, 30-amp twist lock plugs, receptacles, and connectors are essential elements. This is based on the fact that these...
Understanding NEMA Twist Lock Configuration NEMA twist lock configurations aim to create an unbreakable and highly effective link in electrical systems. The locking element is responsible for that in...
It is essential to understand the’ types, configurations, and modes of action of electrical connections, especially when dealing with electrical systems for safe and efficient performance. The various NCT...
Getting a quote for RV Power Pedestals
Enhance your RV experience by using our modern and advanced RV Power Pedestals. One of the main purposes of every trip is to have no problems with energy.
Frequently Asked Questions
What is the purpose of RV power pedestals, and how do they work?
RV power pedestals serve as vital electrical power distribution devices in RV parks and camping grounds. They connect recreational vehicles to the electrical supply and are rated at different amperage levels, such as 20-amp, 30-amp, and 50-amp outlets. These units have a built-in power outlet panel connected to the RV’s electrical system to supply power to the RV’s appliances and other devices.
Can you explain the distinction between metered and unmetered RV power pedestals?
Metered RV power pedestals keep records of the power used by a given RV and help in billing as per usage. However, unmetered RV power pedestals charge a fixed rate for power use, regardless of consumption. This differentiation is crucial for helping campers estimate their likely expenses during their stay at an RV park.
How can I determine the correct amp rating for my RV power pedestal?
When choosing an RV power pedestal, it is important to remember the current trend within which the RV operates. A simple example can be, 30 amp service can be allocated to the RV, or it can be a 50 amp service in case of the bigger RV that requires more power due to the extra utilities in the RV, or a 30 amp service specifically to the bigger RV because it has more appliances to work with and still has extra power. Checking the RV's electrical capacity is a key factor.
What are the contents for looking at a power outlet panel used in an RV?
Search for a power outlet panel which incorporates a GFCI breaker and is UL certified, together with multiple amperages of power, 20A and 50A too. This includes wet location boxes, surge protection, and various NEMA configuration compatible panels for RV use.
Are there any security measures for RV electrical outlet pedestals?
Indeed, operating electricity at RV campsites aims at improved safety, comprising many RV socket towers that contain a voltage readout with a protector and are built to resist adverse weather conditions. This is very critical to ensuring safe electrical services in RV campsites.
What added advantage does a surface-mount RV electrical pedestal offer?
Surface-mount RV power pedestals do not require extensive excavation, thus allowing easy installation on many surfaces. They are accessible and can be placed in amenities where RV users need them most. Therefore, they are suitable for commercial and residential applications in RV parks or marinas.
Could we position a 70a RV pedestal for the purpose of providing power to my recreational vehicle?
Though there are not many 70a RV pedestals available, it comes to a point when the RV needs such power. Before installing 70a pedestals, first verify that the RV's electrical system is 70a compatible, and remember that the services should be provided by a licensed electrician, as they involve the NEC.
Do RV power pedestals need maintenance, and in what way?
Maintenance of RV power pedestals involves routine checkups for wear, proper connection, as well as damage. Cleaning the surface-mount and verifying that all GFCI outlets are operating are important steps to keep the pedestal safe and in proper condition.
What is the mode of integrating water supply connections alongside RV power pedestals?
Some RV power pedestals are also equipped with built-in water supply connections. Such models can integrate both electrical and water supply systems into a single unit, allowing RV users to access the necessary utilities at a single point. Care should be taken to ensure that all water connections are water-tight.
