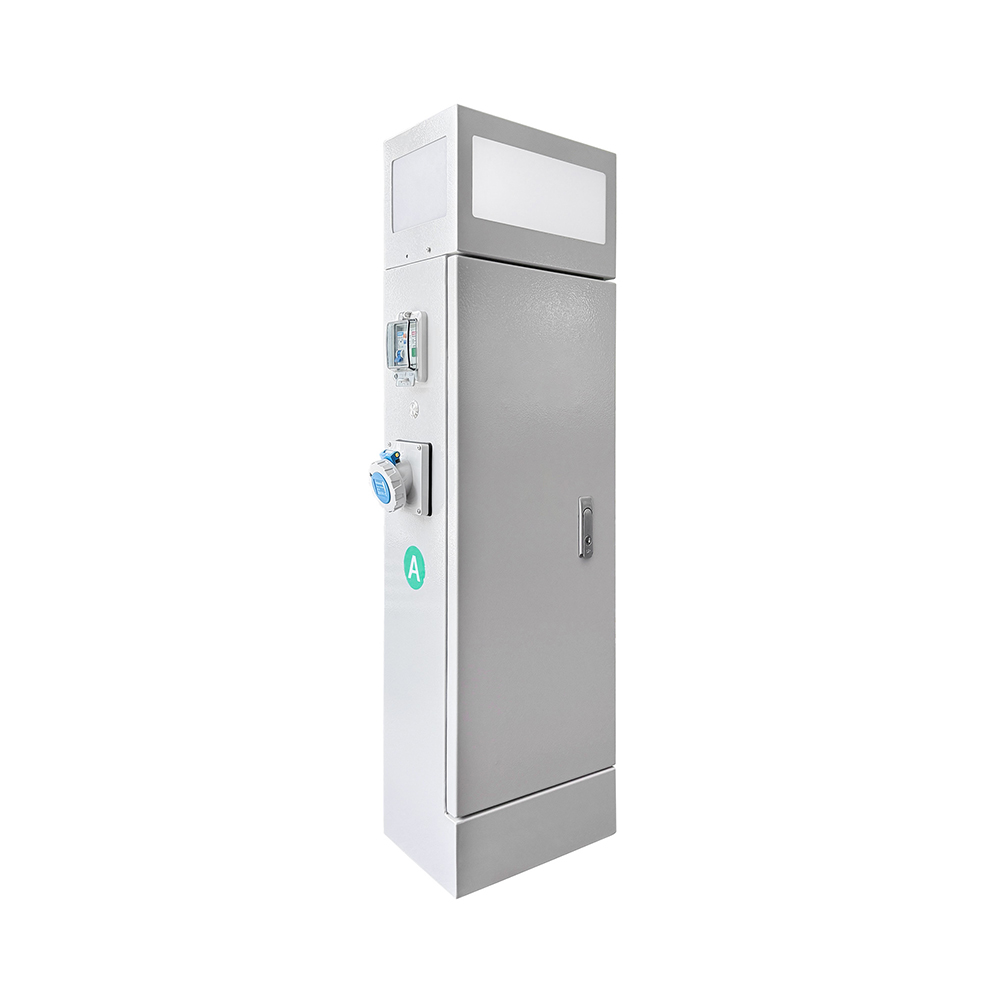

The GRES100 Series offers durable 304 stainless steel power and water pedestals with IP54 overall and IP67 socket protection for RV parks and marinas.
The GRES100 Series features integrated water and power distribution pedestals built for RV parks, campgrounds, marinas, and public outdoor utility areas. Designed for direct outdoor installation, these pedestals are highly resilient to demanding environments, including heavy rain, high humidity, and prolonged UV exposure. Each unit is constructed from robust 304 stainless steel and features high-protection electrical sockets. With flexible options for water outlets, safety protection components, and integrated LED lighting, the GRES100 Series delivers highly configurable solutions to meet local electrical standards and specific site layout requirements.
The GRES100 Series integrates multiple power socket types, water outlets, and protective configurations into a single pedestal. This versatile layout allows the pedestal to supply both power and water simultaneously to multiple users, making it highly effective for high-traffic campsites, tourist attractions, and public outdoor venues.
Safety is maintained through integrated protection systems, including a built-in leakage protection device (leakage threshold ≤30mA/0.1s) along with short-circuit and overload protection. These integrated safety features safeguard both end-users and connected equipment against electrical faults in outdoor settings.
The entire enclosure carries an IP54 dust and water protection rating, while the individual power sockets are rated IP67 to withstand direct exposure to wet conditions. Engineered to operate reliably in temperature ranges from -30°C to 60°C, the pedestals maintain stable performance during heavy rain, cold winters, and high-salinity coastal marine environments.
Constructed with a thickened 304 stainless steel column, the pedestal housing offers high impact resistance and long-term corrosion protection. Designed to withstand demanding outdoor environments, the structural frame supports a service life exceeding 10 years, which helps lower ongoing utility maintenance costs for campsite operators.
| Specification |
|
|
|
|---|---|---|---|

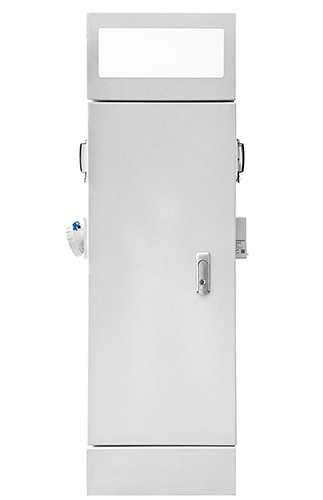

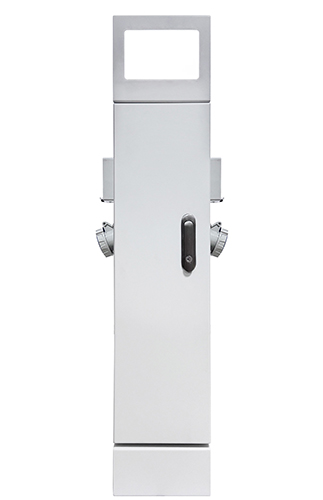

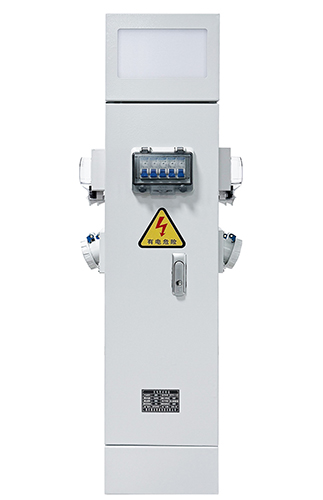

| Model | GRES1002020D-R | GRES1002520D-R | GRES1003020D-R |

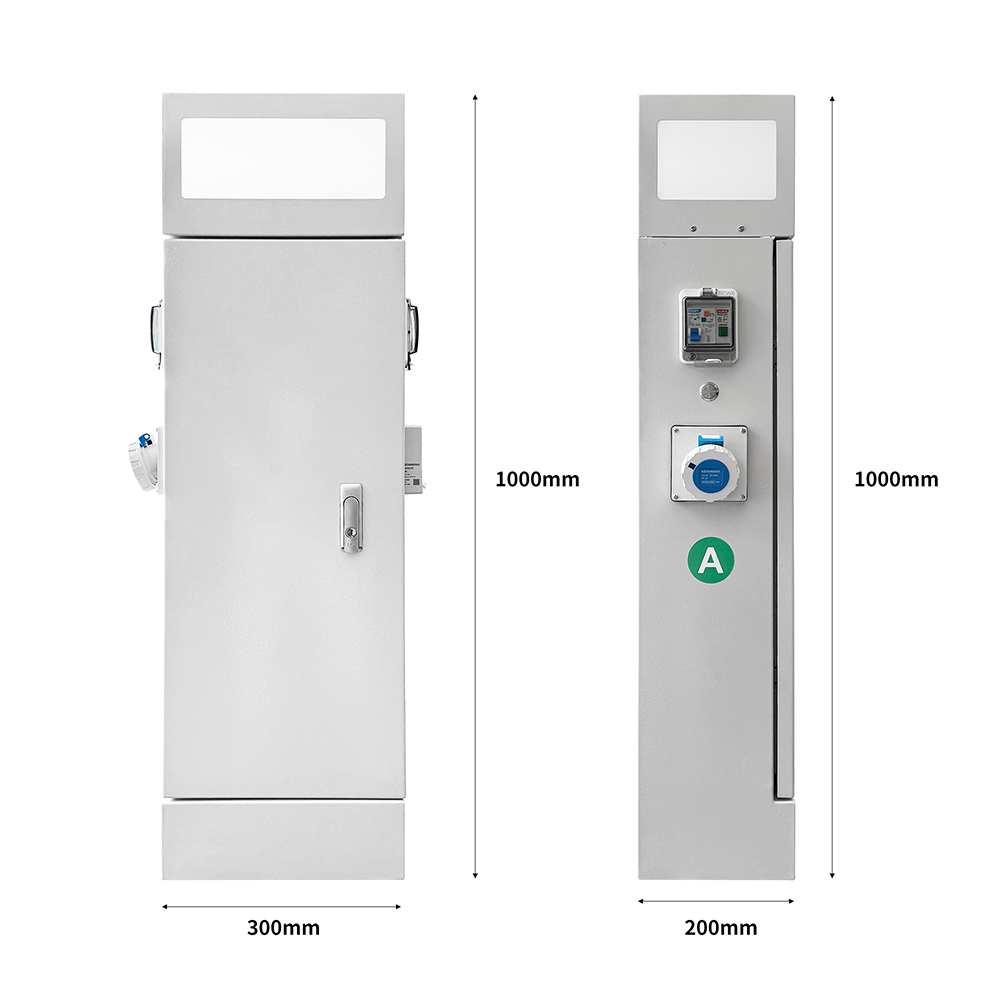

| Dimensions (H × W × D) | 1000 × 200 × 200 mm | 1000 × 250 × 200 mm | 1000 × 300 × 200 mm |
| Sockets | 2 | 2 | 2 |
| Water Faucets | 2 | 2 | 2 |
| Safety Protection | Yes | Yes | Yes |
| LED Light | Yes | Yes | Yes |
The primary difference between the GRES100 models is the enclosure width, which provides different volumes of internal space to accommodate custom electrical configurations, larger protection devices, and varied project requirements.
The GRES100 Series can be customized to meet the requirements of different commercial and public projects. Customization options include:
| Specification | Details |
|---|---|
| Product Series | GRES100 Series |
| Material | 304 Stainless Steel |
| Installation Type | Floor Mounted / Ground Mounted |
| Power Supply Method | Integrated Sockets |
| Safety Protection | Overload, Short-Circuit, and Leakage Protection |
| Lighting | Integrated LED Lighting |
| Color | White (Custom Colors Available) |
| Application | Outdoor Utility Distribution |
| Customization | Available |
JIYA team can help you select the right product based on your site requirements.
