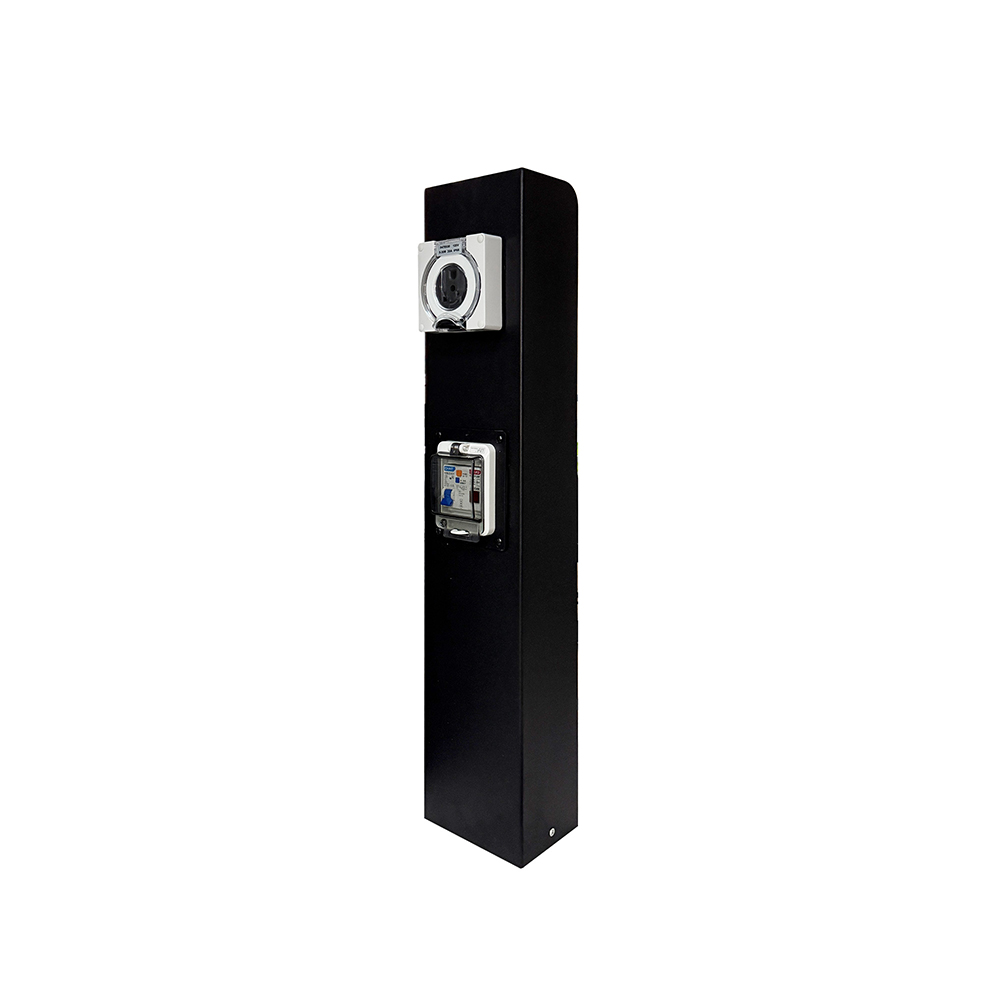

The GRES701410 Series features 304 stainless steel, North American standard RV power pedestals with IP54 rating for campgrounds and outdoor parks.
The GRES701410 Series offers commercial-grade power pedestals built for North American standard RV parks, campgrounds, and public outdoor utility areas. Engineered to comply with North American electrical standards, these units feature a minimalist, durable design suitable for large-scale engineering procurement and systematic deployment. Each pedestal is constructed from 304 stainless steel with high dustproof and waterproof ratings to handle harsh climates. Equipped with configurable safety mechanisms and optional LED lighting layouts, the GRES701410 Series delivers stable, compliant, and reliable utility distribution for outdoor vehicles and equipment.
With an optimized height of 700mm, the pedestal is designed for standing operation. This ergonomic height makes plugging and unplugging power cables smooth and comfortable, improving the daily user experience at active campsites and marinas.
The entire enclosure carries an IP54 dust and water protection rating and utilizes compliant North American standard power sockets. Built to operate reliably in temperatures from -30°C to 60°C, the pedestal stands up to freezing winters, heavy rains, and high-salinity coastal environments.
Constructed with a thickened 304 stainless steel post, the unit provides high impact resistance and long-term corrosion protection in demanding outdoor conditions. This structural frame supports an expected service life exceeding 10 years, lowering long-term maintenance overhead.
Featuring a unified upright structure, the pedestal is designed for quick surface anchoring and immediate utility wiring. Minimal ongoing maintenance is required after setup, making this series highly suitable for systematic, large-scale deployments across commercial properties.
| Specification |
|
|
|---|---|---|

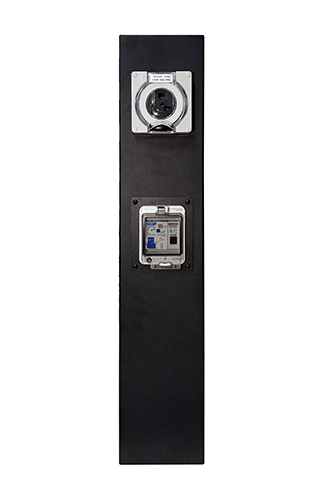

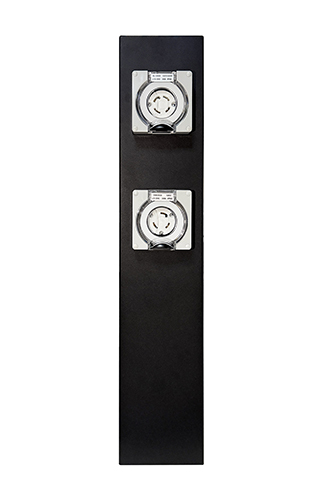

| Model | GRES701410S-1 | GRES701410S-2 |
| Dimensions (H × W × D) | 700 × 140 × 100 mm | 700 × 140 × 100 mm |
| Sockets | 1 | 2 |
| Electrical Protection (Short/Overload/Leakage) | Yes | — |
The primary differences between the models are the socket count and the inclusion of integrated electrical protection (short circuit, overload, and leakage protection) on the GRES701410S-1, providing options for varied system requirements and wiring plans.
The GRES701410 Series can be customized to meet the requirements of different commercial campsite projects. Customization options include:
| Specification | Details |
|---|---|
| Product Series | GRES701410 Series |
| Material | 304 Stainless Steel |
| Installation Type | Floor Mounted / Ground Mounted |
| Power Supply Method | Integrated Sockets (North American Standard) |
| Color | Black (Custom Colors Available) |
| Application | Outdoor Utility Distribution |
| Customization | Available |
JIYA team can help you select the right product based on your site requirements.
