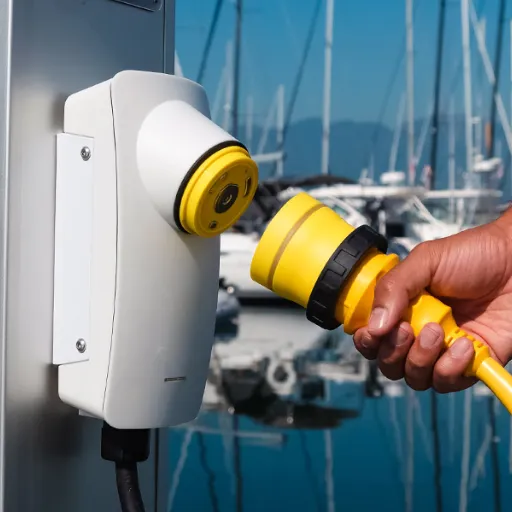

Introduction to Marine Boat Power Systems
Understanding Shore Power Basics
An electricity shore connection is one of the most beneficial features for those who usually stay on the boat at the marina or docks. It is the facility that connects electrical power from the dock to the boat. Consequently, the energy supplied for the onboard systems is absolutely reliable as long as the ship is not moving. Besides, this system guarantees electricity availability without draining off the boat’s batteries or running its generators. Therefore, it really is a must-have feature for long-term moorings at marinas or docks. Shore power systems consist of the following main components shore power inlets, cables, connectors and circuit protection devices.
For the shore power to be used safely, it is very important to match the power needs of the boat with the voltage and amperage of the shore supply. The standard setups typically provide either 120-volt or 240-volt power, with the amperage usually ranging between 15 and 50 amps. It is extremely important to make sure your boat’s electrical system is compatible with the dock’s outlet in order to avoid damaging your equipment. In case of a difference, adapters can be used to connect the two systems, but the adapters have to be handled very carefully so that they do not pose a safety risk.
The proper maintenance and care of shore power equipment are vital for safe operation. Be sure to check regularly cables, connectors and inlets for signs of wear, corrosion or damage that might affect performance. Always connect and disconnect the system following the manufacturer’s instructions and make sure that the power supply is switched off before plugging in or unplugging cables. Following these practices will help to ensure electrical safety and reliability during your time on the water.
Importance of Reliable Power Supply for Boaters
It is a must for the power supply to be reliable in order to ensure the safe and smooth operation of the vessels for boaters. The electrical systems that are on board supply the critical components with power like navigation lights, communication devices, and GPS systems, which are all very important for safety, particularly in low visibility or emergencies. A trustworthy power source is instrumental in keeping the essential systems up and running; otherwise, these systems would fail and the vessel along with the crew would then be at risk.
Moreover, a power supply that you can always rely on is the main factor that makes the boat a place of comfort and luxury. The electrical supply is the only thing that modern boats can ever depend on for amenities like refrigeration, lighting, and entertainment systems. The power system could malfunction and that would disrupt these amenities, which would greatly reduce the overall enjoyment of time spent on water and potentially lead to cutting trips short.
Also, maintaining a steady power supply contributes to the protection of the equipment used on boats in terms of their longevity. The power interruptions or fluctuations can be the reason why the boat’s sensitive electronics will get damaged, and this in turn would result in expensive repairs or replacements. It is necessary to have regular maintenance, proper charging, and investment in good-quality power systems, as they all play a vital role in ensuring reliability. If the boaters put first a dependable power source, they can at the same time improve the safety and performance of their time spent on the water.
Overview of Marine Shore Power Systems
Marine shore power systems are a vital source of electric power for boats when they are berthed. These systems let ships utilize the power of he shore and thus, the consumption of fuel-powered generators is curtailed. So, using shore power enables fuel-free and emission-free operation of the vessels’ appliances, battery charging, and maintenance of electrical systems.
A marine shore power system usually consists of a power pedestal on the shore, power cables, connectors, and a distribution system on board. The pedestal provides electricity to the boat at safe and uniform voltages. Properly rated power cables and connectors ensure the reliable transfer of power, and the distribution system on board controls the flow of electricity to the different systems in the boat. It is imperative to abide by the marine electrical standards to avoid safety problems like electrical fires or shocks.
Regular inspections and maintenance are unavoidable for the safe and efficient operation of shore power systems. The users have to make sure that the power cables and connectors are in good condition, connections are kept clean, and all the components are compliant with the safety standards. Besides, the installation done by qualified technicians increases the dependability and lifespan of the system even more. With these measures in place, marine shore power systems are a source of both convenience and safety for boaters.

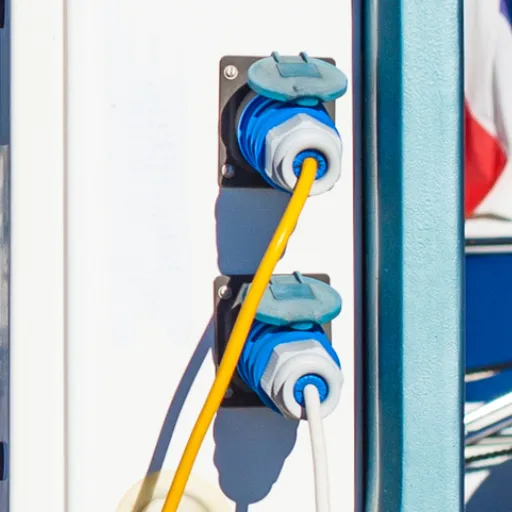

Types of Shore Power Adapters
Understanding Marine Shore Power Adapters
Marine shore power adapters are necessary items that make it possible for boats to plug into and make use of the shore electrical systems in a smooth and safe way. These adapters act as a link between the shore power supply and the ship’s electrical demand by making sure that different power types, voltages, and plug configurations are compatible. The absence of them would make the connection of boats to the shore power supply a source of potential electrical hazards or equipment damage.
Each type of shore power adapter has its own illumination and pros; these adapters can be used in different ways. For example, some adapters can be used with different amperage capacities, such as a 30-amp vessel connected to a 50-amp shore power supply. Moreover, some adapters make it possible to configure different plug sockets so that boaters are able to get a reliable electrical connection regardless of the electrical infrastructure of the marina. It is really important to use an adapter that is not only compatible with the boat’s system but also the shore power supply in order to achieve the best performance.
The proper adapter usage not only protects the boat’s electrical systems but also guarantees the safety of all the crew members. When it comes to the selection of a shore power adapter, boaters should consider the quality of the materials used and look for the necessary certifications that would confirm compliance with safety standards. Additionally, the regular examination and upkeep of adapters is a must in order to eliminate the risk of hardware failure and thus avoid the problems associated with poor connections. It is by way of getting to know and using the correct marine shore power adapter that one can greatly improve the convenience and safety of their shore power installation.
Different Types of Shore Power Connectors
The types of shore power connectors offer different power requirements and standards. Most common types are classified according to their amperage ratings, which are usually 15-amp, 30-amp, 50-amp, and 100-amp systems. The main features of these connectors are their different designs and the proper capacity to handle the electrical loads, and this guarantees a compatibility range of vessels from smaller ones lying at anchor to larger yachts. Ampacity rating of every type corresponds to different plug configurations and cable sizes.
Moreover, the shore power connectors can also be classified based on the voltage requirements, such as single-phase or three-phase systems. Single-phase connectors are usually found in the equipment of smaller boats with less power consumption, while three-phase systems are for big vessels that need a lot of power. Choosing the right connector type is essential to avoid overloads in electrical systems or creating dangers in the form of fire or electric shock.
Connector matching between the power configuration of the boat and the shore electrical source is an indispensable condition for safe and effective use. In addition, the users should ensure that the connectors are in accordance with the safety standards and suitable for the electrical installation of their marina or docking area. Installation practices and maintenance procedures being the key will increase the reliability and durability of the entire shore power system.
Selecting the Correct Adapter for Your Boat
The selection of the correct adapter for your boat is very important because it will determine the compatibility with the power system of your boat and the shore electrical source. To ensure safe operation as well as to avoid electrical hazards on your boat, the voltage and amperage ratings of the adapter must be exactly the same as your boat’s power requirements. Also, the prong configuration of the adapter should be checked as to whether it matches the shore power outlet and your boat’s inlet.
Consider the environmental conditions of your docking area. Using an adapter with weatherproof and corrosion-resistant features is a must if you are going to use it in wet or salty areas. The additional protection that comes with the use of such an adapter will make it last longer and operate reliably even if the conditions are tough. Always check that the adapter complies with the relevant marine electrical safety standards for the best performance and peace of mind.
The length and flexibility of the adapter cord are also important. The right length makes it easy to connect without putting any strain on the connections, and a flexible yet durable design makes it more user-friendly. By carefully considering these factors, you will be able to choose an adapter that will create a safe, effective, and reliable environment for your boat’s electrical systems.

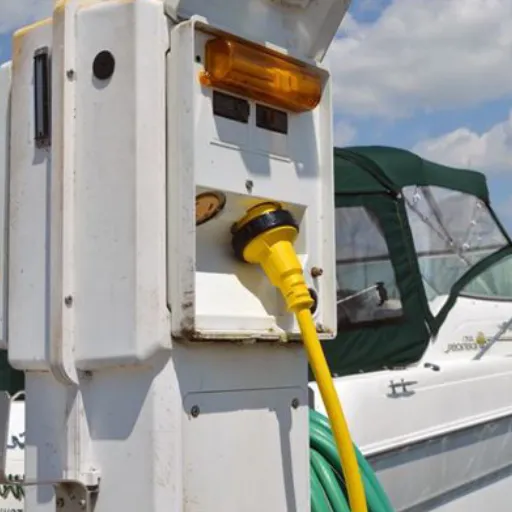

Power Supply Components in Marine Applications
Battery Types and Their Applications
Marine batteries are electric power producers that are mandatory items for the electrical systems of boats. Marine batteries are capable of providing excellent power for the starting of engines, running of electronics, and the operation of auxiliary systems. There are various types of batteries that are often used for marine applications; each type has its advantages and disadvantages in terms of cost and suitability for use with a specific purpose. Below is an overview of the major battery types and their respective applications:
Flooded Lead-Acid Batteries:
Flooded lead-acid batteries are among the oldest types of batteries and are the most economical of all the options listed. These batteries need regular maintenance, including the addition of distilled water to the electrolyte level. They are suitable for applications where cost is the most important factor and are usually found in small boats with primary and minor electrical systems. Also, the lifespan of flooded lead-acid batteries is shorter when compared to other battery types, and with the right use, it is usually around 2 to 5 years.
Gel Cell Batteries:
Gel cell batteries are a kind of lead-acid battery growing in popularity where the electrolyte is in gel form and not as a liquid. They require no maintenance, and they are guaranteed not to leak. They also function effectively in a wide range of temperatures (from moderate to high). The slow rate of self-discharge of the batteries, together with their resistance to vibrations, has made this type of battery commonly used in medium to large boats for lighting, navigation, and even for use with sensitive electronics. If the right conditions are provided, they will have a lifespan of around 4 to 6 years.
Absorbent Glass Mat (AGM) Batteries:
The AGM battery is a type of lead-acid battery that has a fiberglass mat soaked with the electrolyte. This type of battery is very powerful, user-friendly, and robust, as it can survive even the most severe conditions, providing cold-cranking amps (CCA) for starting engines. They are well-suited for the house battery banks in boats with great power consumption as they are capable of handling heavy electrical loads. The typical lifespan of an AGM battery is 4-8 years, and it can take a lot of abuse in terms of deep discharge and vibration resistance.
Lithium-Ion Batteries:
Lithium-ion batteries can be viewed as the next big thing in marine battery tech. These batteries come with a low weight, and a huge energy density along with the capability of getting many cycles (sometimes even lasting 10-15 years) compared to lead-acid batteries. Nowadays, lithium-ion batteries are being employed in applications that call for rapid charging, deep cycling, and up-market or electric boats. Their high initial cost may be off-putting; however, when their long life and efficiency are taken into account, they actually offer great long-term value.
Data Comparison of Marine Battery Types:
Choosing a battery type involves taking into consideration the power consumption, price, and environment of your boat. The different battery types come with their pros and cons, and correctly matching to your boat’s electrical system will result in better performance and longer life. Manufacturer recommendations should always be followed, and professional assistance should be obtained when doing battery installation or replacement.
Understanding Marine Inverters and Converters
Marine inverters and converters are extremely important for the electrical management and adaptation of boats, thus providing an appropriate power supply to all the devices and systems onboard. A marine inverter basically converts the DC (direct current) from the ship’s batteries to AC (alternating current) to be used for running household appliances and electronics. In that case, boaters can use their microwaves, refrigerators, and charging units, etc., even in the absence of shore power because of the inverter’s operation.
On the other hand, a marine converter performs the function of AC to DC conversion by taking the power from the shore and using it for the charging of the boat’s battery banks and operating the DC devices. Converters are the must-have accessory when moored because they not only allow the batteries to get charged but also let equipment such as lights, radios, and navigation systems to work with the stored energy without draining it. Several cutting-edge systems have merged inverters and converters into a single unit, which in turn benefits the user with easier operation and less hassle with installation.
While it is very necessary to find out the exact power ratings of the onboard equipment, it is also essential to take into account the electrical capacity of the boat and the size of the battery bank when selecting an inverter or a converter. Proper sizing can avoid problems such as a lack of power or overheating. Seeking professional help is very advisable to make a safe and efficient integration into the electrical system of the boat.
Heavy-Duty Shore Power Supplies
Heavy-duty shore power supplies are indispensable to ensure that the power supply for a boat is reliable and consistent while the boat is docked. The supplies are made to handle high electrical loads, especially for large power-consuming vessels with multiple systems and equipment that require power to function. The supplies are also known for their longevity, as they are particularly made to endure tough marine conditions, including saltwater, humidity, and extreme temperature variations.
In the process of selecting heavy-duty shore power supplies, the compatibility with the vessel’s electrical system is of paramount importance. This entails making sure the voltage and amperage ratings are suited so that neither the equipment will be overloaded nor the equipment underpowered. Furthermore, safety features like fuses or thermal protection are paramount to keep the boat’s electrical circuits safe from the possibility of being damaged. Using properly rated marine-grade connectors and cables not only adds further reinforcement to safety but also lessens the chance of a malfunction occurring.
The proper setting up of heavy-duty shore power supplies and their maintenance are also pillars of their good performance and long life. For electrical problem prevention, the process of regularly inspecting connections, cleaning contacts, and ensuring there are no damaged cables can be of great help. It is highly recommended to consult with a marine electrician when it comes to installation or troubleshooting, as it helps to comply with safety standards and boosts system reliability. By doing this, the boaters can be assured of a constant and safe electrical connection while the boat is docked.

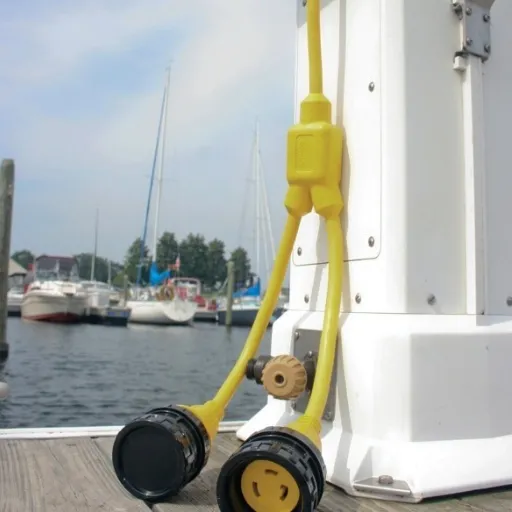

Installation Process for Shore Power Systems
Planning Your Power Supply Setup
When the time comes for your shore power supply setup, the very first thing to do is to calculate the power requirements of your boat. Add up all the power-consuming systems installed onboard like the lights, refrigerator, air conditioning, and many others. The power standards of the shore power system are either 120V or 240V, hence, knowing the right voltage and amperage for your vessel is very crucial not to mistakenly push the system into overload.
Then, the shore power connection of your dock or marina should be reviewed. Power pedestals and outlets that are rated for the electrical needs of your boat should really be checked for availability. Inspect the dockside connections’ condition and make sure that they are working properly and are up to local safety standards. When in doubt, ask the marina management or a certified marine electrician to verify the situation for you.
At last, make a plan for a safe installation and usage of the necessary power supply cords, connectors, and breakers. All the parts should follow the marine-grade quality standard of being strong, resistant to harsh weather, and safe. A great installation plan has to deal with issues regarding grounding, circuit protection, and waterproofing so that the risks of electric shock or damage can be minimized. All these actions will contribute to having not only a reliable but also safe shore power setup for your vessel.
Mounting and Wiring Shore Power Adapters
The mounting and wiring of shore power adapters are tasks that require meticulous planning and proper execution in order to guarantee both safety and functionality. Start by selecting the location where the mounting will take place. The adapter should be fitted in a location that is not only easy to access but also safe from water exposure or physical damage. Make sure the mounting site is well-ventilated to avoid overheating and do not site it in places that are subject to excessive vibrations. Use strong and corrosion-resistant hardware to fasten the adapter securely to the mounting surface.
When the wiring of the shore power adapter is in progress, follow the prescribed marine electrical standards. First, disconnect the vessel from the power supply to avoid electric shock. Then, use marine-grade cables that are properly rated for the connection to the adapter, making sure that the correct wire gauge for the amperage rating of the adapter is used. The wire connections should be firmly secured to avoid loose or exposed parts and all connections must be insulated to eliminate the risk of short circuits. Be very careful with the polarity and grounding during the entire wiring process since incorrect wiring may cause safety and operational problems that are hard to fix.
Once the mounting and wiring have been done, proceed with a thorough inspection and testing of the setup . Verify that all connections are securely fastened and look for signs of wear, corrosion, or damage. The system can be tested through the shore power cord being plugged into the power supply and checking of the onboard electrical systems’ functionality. In case of any issues, check the wiring again and verify that all the components are up to the safety standards. The setup will be made both reliable and unintimidating if proper maintenance and inspections are regularly conducted.
Safety Considerations and Best Practices
Safety considerations should always be the first priority when handling systems for shore power in order to avoid accidents, damage to equipment and electrical hazards. Below are the main safety tips and practices for consideration that will help you work properly and remain safe:
- Use Properly Rated Equipment:
Make sure always that cords, plugs, and connectors are rated for the voltage and amperage of your system. For instance, the majority of marine shore power systems are rated for either 30 or 50 amps. Using the wrong ratings could result in overheating or even destruction.
- Inspect Cords and Connections Regularly:
A broken cable, a bad plug, or a bent pin in a connector can all lead to safety concerns. Inspect your shore power cables thoroughly before every use. Research shows that around 70% of fires on boats are caused by electrical issues, hence inspections should be considered as a very important preventive step.
- Avoid Overloading Circuits:
Too much usage of power will result in trip breakers, overheating, or even in electrical fires. Make very accurate calculations of your power consumption so that it will not exceed the shore power system’s capacity.
- Use Ground Fault Protection:
Ground Fault Circuit Interrupters (GFCIs) and Equipment Leakage Circuit Interrupters (ELCIs) are the kinds of devices that you should use. These devices have brought about a significant impact in the reduction of the occurrence of fatal electric shock in wet areas.
- Keep Equipment Dry:
Never use shore power systems in wet or moist areas since water is a major cause of electric shock. Make sure to connect and disconnect appliances only with dry hands and if the weather is dry, then it is possible.
- Label Breakers and Circuits Clearly:
In case of any troubleshooting or maintenance, properly labeled systems ensure that the processes are done safely and quickly. Research says that during emergencies, confusion often leads to unintentional mistakes that proper labeling could have avoided.
- Educate Yourself and Crew:
All the crew operating the ship must be made aware of the proper methods of using the electrical systems. Regularly conduct safety drills to train the crew on how to deal with electrical emergencies.
You may greatly decrease the risks involved and at the same time guarantee the reliability of your shore power system if you observe these precautions and practice maintenance regularly.

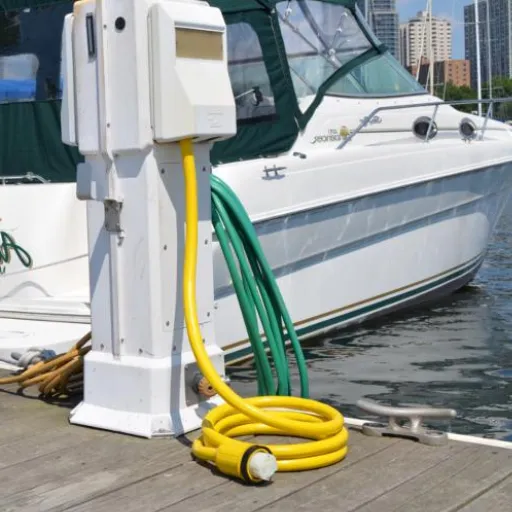

Routine Maintenance and Troubleshooting
Regular Maintenance for Optimal Performance
If you want to have a reliable shore power system, you need to regularly inspect all the connections and components of the system. Start off by looking closely at the cables for any signs of wear such as fraying or exposed wiring and if there are any damaged parts, replace them right away. Inspect cords and outlets for corrosion or heat damage since these problems can lead to unsafe conditions and decreased efficiency.
All electrical contacts should be cleaned regularly so that there is no accumulation of dirt or debris which could lower conductivity. Cleaning tools that are designed for this purpose should be used so as not to cause harm to the sensitive parts. Moreover, confirm that the fittings of all connections are tightly secured and that there are no loose fittings because these could turn into hazards eventually.
Last but not least, test the system from time to time to make sure it is functioning properly. Simple tools like a multimeter can help you measure voltage and detect any irregularities. If the problem persists, call a professional electrician to examine and fix the issue. Through regular maintenance, you can not only prolong the life of your shore power system but also keep it safe to use.
Common Issues with Shore Power Systems
Despite their very useful utility, shore power systems continue to pose a range of issues that are likely to affect their performance and safety if these problems are not resolved quickly. Here are some of the most frequently encountered problems with shore power systems:
Corrosion of Connectors and Plugs:
Saltwater and humidity are the two main environmental factors that lead to corrosion of connectors and plugs in shore power systems. It is only a matter of time before the corrosion starts to affect the electrical connections negatively, leading to overheating and fire hazards in extreme cases. If the connectors and plugs are frequently inspected and anti-corrosion sprays applied, the corrosion problem can be alleviated.
Voltage Drops:
The main causes of voltage drops in a shore power system are long distances between the power source and the equipment that is connected, as well as the use of small wiring. The American Boat and Yacht Council (ABYC) specifies that a voltage drop greater than 10% will impair the operation of the most sensitive electronics on board. The use of a multimeter is one way of checking voltage regularly and thus preventing the occurrence of this problem.
Overloading of Circuits:
Shore power systems are often overloaded when a large number of high-power appliances are used at once. As a consequence, tripping of breakers will become frequent and heating up of the power system may result. One way to deal with it is to upgrade to a higher-capacity system or to practice power conservation.
Damaged Cables:
All kinds of factors like wear and tear, exposure to UV rays, and improper handling, might lead to cable damage. Faulty cables not only interrupt the power supply but also create a very dangerous situation in terms of electric shock. Damaged cables make up a considerable share of electrical accidents reported in the marine industry, according to a study by the U. S. Consumer Product Safety Commission. Heavy-duty, marine-grade cables should be used.
Reverse Polarity:
Reversed polarity means that the hot and neutral wires have been interchanged in a connection. This situation is very dangerous because it can result in electric shock or destruction of onboard equipment. However, reverse polarity indicators are available on many modern shore power systems to signal users in case of reverse polarity events.
Ground Faults:
Ground faults are caused by the current leaking to unintended places outside of the proper circuit, whereby the risks of electric shock or fire are created. Ground Fault Circuit Interrupters (GFCIs) are effective in discovering and stopping these faults right away. The statistics show that among the top causes of electrical failures in marine areas are ground faults.
When the common problems of shore power systems are known and dealt with, their performance and safety will be maintained. Standard routine checks, quality component usage, and compliance with marine electrical standards such as those established by the ABYC will confirm that you are not exposed to costly repairs and hazardous situations.
Advanced Troubleshooting Techniques
When it comes to troubleshooting shore power systems, the first thing I do is follow a systematic approach and look for common problems like loose connections, corroded terminals, or defective circuit breakers. I use a multimeter to test and measure the voltage levels and continuity to detect any differences within the system. Moreover, I check if all the equipment meets the ABYC standards and test the operation of the ground fault protection devices. I can quickly find and fix problems while prioritizing safety when taking a structured approach and using trustworthy diagnostic tools.
Frequently Asked Questions (FAQ)
Q: What is a boat power supply?
A: An ocean manufacture of system that supplies electrical energy to any device and equipment on a ship is called a boat power supply; that system basically contains batteries, chargers, and panels that convert some energy for use onboard or sometimes just store it.
Q: How does a battery charger work for a boat’s power supply?
A: A battery charger works on the boat’s power supply to recharge the batteries kept within the boat, usually 12-volt systems. It converts incoming AC power from shore power or a generator to DC power that the batteries can store. High-quality marine battery chargers often have surge and overcharge protection features.
Q: What voltages are normally found in boat power supply systems?
A: The greater part of the boat’s power supply systems runs on 12 DC power, which applies to the majority of onboard electronics, lights, and appliances. A few large ships may be required to produce power at 24 or 48 volts.
Q: What is the investment of a 30-amp power supply in boating?
A: A 30-amp power supply is commonly used for larger boats or RVs that require a higher amount of power. It is the maximum current that can be supplied, thereby allowing more than one appliance to work together without overloading the system.
Q: To connect a charger to a boat’s power supply, what do I need to do?
A: To connect a charger to a boat power supply, ensure that you have the correct NEMA configuration, such as L5-30R for the outlet and L5-30P for the plug, and that voltage and frequency are matched, or else you may cause damage to both the charger and the boat electrical system.
Q: What are the types of RV accessories that can help boost the boat’s power supply?
A: Solar panels and a good marine battery charger are RV accessories that can really make a difference in supplying power to the boat; the solar panels will basically provide renewable energy for the boat, while the marine battery charger ensures that your batteries will be ready all the time for use.
Q: What are printer-worthy components of a good marine battery charger?
A: When searching for a good marine battery charger, ensure that it is equipped with such features as multi-stage charging and can support different battery types. Further, protection could come in the form of safeguards such as surge protection. Meanwhile, the locking rings and female connectors must be used to build secure connections.
Q: Can I use household appliances with my boat’s power supply?
A: Yes, if household appliances are configured to have a voltage compatible with your boat’s power supply, then they can be used with your boat’s power supply. Do not let the total load exceed the ability of the power supply. Most allow 30A 125V for marine applications.
Q: What does an alternator do in a boat’s power supply system?
A: The alternator charges batteries while the engine is running in a boat’s power supply system. It converts mechanical energy to electrical energy, thus continuously powering onboard systems and charging batteries for future use.
Q: How do I make my boat’s power supply system safe?
A: It is advised to keep in mind the safety aspects of the power supply system of your boat by performing regular checks of all connections, ensuring the use of top-quality materials, and providing adequate insulation for the wiring. Surge protectors, in any case, can be recommended for an additional layer of protection from sudden voltage spikes.
