When discussing the quality of the system, particularly under challenging circumstances, 30-amp twist lock plugs, receptacles, and connectors are essential elements. This is based on the fact that these locking devices are designed to provide a secure, risk-free, long-term, and self-sustaining connection, even in harsh environments. False disconnects, along with power interruptions or shortfalls, keep everyone trembling within the structures. Even a simple activity like setting up an emergency generator is done with complete assurance that no miscalculation or oversight will accidentally necessitate re-connection. In this section, the author explores the structure, use, and importance, as well as how to select the proper 30-amp twist-lock telephone set for use in your construction. Now that you know its use, there is more than meets the eye, and let’s delve into why these gadgets are essential in the electrical arena.

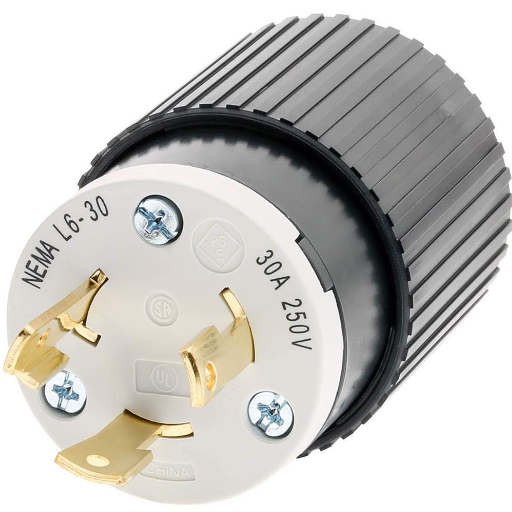

Understanding 30-Amp Twist Lock Devices
These are not common to many and are simple to select. Additionally, these connectors are evaluated under specific operating conditions and are designated by the percentage of time they operate within. The devices in question are equipped with a locking mechanism that holds the plug once inserted and rotated, thereby preventing any accidental pull-outs. These factors are the standards in many electrical equipment operating places, including industrial facilities and recreational vehicles in camping surroundings. With their robust structure and resistance to weather, they are suitable for use in harsh applications and conditions where safety and optimal performance are required. However, when considering a 30-amp twist-lock device, it is essential to confirm that it can work effectively with the equipment in question and also meet any necessary safety requirements.
What is a Twist Lock Plug?
A twist lock plug is a type of electrical plug designed to secure by twisting into a matching receptacle for easy extraction. This elastic fit prevents jamming or disconnection issues, ensuring a constant and reliable power supply. Twist lock plugs, commonly used in industrial, commercial, and recreational settings, are easily identified by the twist in their prongs, as well as their supply ratings, which include specific sizes of amperage and voltage. These include 30-amp twist-lock plugs that are compatible with industrial equipment and hard-wired appliances. These exits are also considered safe as they do not allow power to be switched off, and in the event of strong resistance to power rationing, do not expose users to live circuits. To comply with safety regulations, a type of twist lock plug is chosen that is specific to the characteristics and requirements of a particular device.
Features of 30 Amp Locking Devices
- Protected Connection: To prevent the equipment from moving out of place, there is a risk that accidental disruption may not be possible.
- Long-Lasting Structure: Typically, high-quality resistance materials, including both metallic and non-metallic materials, are utilized to prevent rapid depreciation under extreme conditions.
- Protected Enclosure System: Typically, 30-amp plug receptacles are equipped with protective covers that shield the device from moisture, dust, and other hazards, allowing the system to be installed outdoors and in factories.
- Ability to Support a Range of Devices: These devices are designed to meet the relevant specifications and are suitable for use in a variety of heavy household or industrial applications.
- Ability to Work With High Power Consumption Current: These are not unusual, coming with a maximum consumption current rating of 30A, and can safely and efficiently bear incredibly high loads.
Importance of Proper Connections
Maintaining safe electrical connections is fundamental for both the safety of its occupants and the effective functioning of the machine. If the connections are not adequately established or the equipment is not safeguarded against being compromised, short circuits, heat build-up, and, in the worst-case scenario, fire can result, destroying critical equipment and causing injury to personnel. The function of ensuring the best connections is also tied to minimizing energy loss, which is practical because energy losses result in wasted energy, and customers do not get the best value from the energy they are purchasing. Datasets available on the internet, particularly through Google’s search engine, seem to indicate that an increasing number of users are aware of the risks associated with electrical safety and the application of termination systems. For this reason, it is crucial to have reliable interlocking devices that comply with the relevant standards to minimize risks to the maximum extent possible.

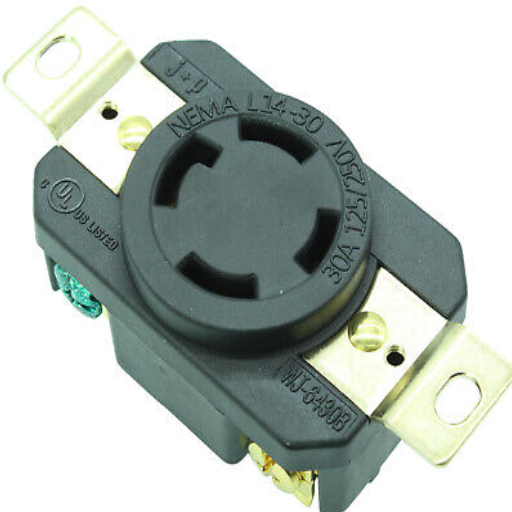

Types of 30 Amp Locking Devices
- Twist-Lock Plugs and Receptacles
These items are equipped with a convenient locking mechanism for the plug, ensuring a firm grip and preventing random disengagement.
- Water-Proof Locking Plugs
Typically constructed for outdoor locations or locales with high moisture content, these connectors are designed to provide a seal that prevents water or other forms of moisture from reaching the point where the cables or wires are connected.
- Heavy-Duty Locking Devices
These are installed in industrial and heavy-duty applications. Such devices are additional equipment or devices for unsupported and hanging industrial cables.
- Lockable Connectors Resistant to Weather Conditions
Such products are perfect for locations that are predominantly hot or cold, as they are designed to be used in such high temperatures and below-zero conditions.
Each of these variants serves a specific purpose, thereby enabling the establishment of a robust and resilient connection for any application.
Male vs. Female Twist Lock Connectors
Connectors have male prongs that extend outward and can be connected by inserting them, while female connectors have holes or flaps that the prongs can be placed into. In male connectors, this design guarantees a strong and safe connection every time.
|
Parameter |
Male Connector |
Female Connector |
|---|---|---|
|
Design |
Protruding prongs |
Internal sockets |
|
Function |
Insert into female |
Receive male prongs |
|
Usage |
Power source |
Device connection |
|
Locking |
Twist to secure |
Holds prongs firmly |
|
Safety |
Exposed contacts |
Concealed contacts |
|
Durability |
Moderate |
High |
|
Applications |
Plugs |
Receptacles |
Overview of 30 Amp Receptacles
Specific electrical components, which are camouflaged in a distinct style due to the prongs’ formation, permit efficient delivery of large amounts of electricity in everyday situations. 30-amp receptacles get connected in a standard setup and hence provide safe connections for appliances that consume 30 amps or less from the power supply. These devices are standard in the installation of RVs, the operation of heavy machinery, and many household appliances, such as fans and heaters. It is quite often that these fuses are used in conjunction with part of a rated circuit breaker to prevent instances where an overcurrent protective device cannot protect the instrument from excessive current flow.
Flush Receptacle vs. Standard Receptacle
The flush receptacles are installed level with the wall surface so that they can be integrated into the surface, while standard ones are attached to the wall surface slightly.
| Parameter | Flush Receptacle | Standard Receptacle |
|---|---|---|
| Design | Seamless with wall | Protrudes slightly |
| Aesthetic | Modern, minimal | Traditional |
| Installation | Complex, costly | Simple, affordable |
| Maintenance | Requires expertise | Easy to maintain |
| Cost | High | Low |
| Durability | Moderate | High |
| Applications | High-end interiors | General use |
Applications of 30 Amp Twist Lock Plugs
30 amp twist lock receptacles are quite commonly used in several high-power domains due to their secure connections and effective operation. The applications for these types of sockets might be:
- Campers: A steady and constant voltage source at campsites or for when vehicles are repaired.
- Factories and construction works: this equipment aids in the utilization of robust tools, devices, and lighting.
- Portable Generators: Joining small power backup systems with a few appliances in case there is a power interruption.
- Hot Air Systems: These large air conditioning units are installed in homes, offices, and factory buildings, consuming a significant amount of power.
Industrial Usage of 30 Amp Devices
30-amp devices are essentially a standard in industrial-use devices since they provide reliable performance without experiencing strain due to heavy power consumption. These are used in most cases to operate large but light machinery, as well as welding equipment and big compressors. Additionally, such devices are capable of powering large-scale and high-demand ventilation and conditioning machinery commonly found in industries. Modern-day 30-amp power amplifiers are notable for their efficient power consumption in support of intended operations, thanks to their integration of high-end features that facilitate easy operation and deliver strong performance. This feature has enabled it to become one of the most widely used systems in various industries, particularly due to the benefits it presents when utilized.
Use in RV and Trailer Power Systems
30-amp power supply systems are commonly used in many RVs and trailers as an efficient way to provide power for all appliances and the internal systems of the vehicles. Such power ratings of the described devices are usually sufficient for the requirements of users who need to operate air conditioning, refrigerators, lighting, and entertainment facilities simultaneously, among others. Due to the convenience they offer in most, and possibly all, campgrounds, most new models of recreational vehicles are equipped with 30 amp service that covers the entirety of the camper’s power needs. In such cases, 30 amp power configurations will be used, together with effective protectors against voltage surges and power protectors, to ensure that efficient power distribution is made available to even the most demanding internet users without wasting power. These electrical accessories are ideal for use due to their easy compatibility with various portable energy sources.
Importance in Generator Connections
The possibility of such a 30-amp power supply making it possible to connect to a generator presents significant promise for ensuring consistent power availability under off-grid conditions. Typically, generators with a 30-amp outlet are capable of simultaneously servicing a recreational vehicle (RV) or a small home, providing power for essential devices and appliances. This includes core areas such as temperature control systems and cold storage units, and also ensures that the lights are on without drawing too much load, as the power will remain as it is generated. In addition, the dependence of 30-amp premade connections promotes faster assembly operations and results in a safer operational environment, hence being an instant choice for most Bowie IKM solutions.
Installation and Safety Considerations
When setting up a 30-amp connection, it is essential to verify that the generator and any other devices meet the required criteria. It’s a good idea to work with good-quality cables and fixtures, as that avoids overheating danger. Avoid using lighted pieces during installation. Use a generator on a properly leveled surface, preferably far away from non-flammable substances. Also, steer clear of using an electric generator indoors, as it can lead to toxin poisoning.
For safe use, always refer to the manual for proper installation and operation of the appliance. Do not forget to switch off the generator before attaching or unplugging anything, and inspect the wires for tears and wear at regular intervals. The use of a transfer switch is strongly encouraged when connecting the generator to the house’s electrical wiring to avoid electrical accidents. It is essential to implement regular servicing to ensure the system’s long-term safety.
Wire Grounding and Connection Tips
Grounding techniques must be performed correctly, and connections must be made secure to ensure that any electrical system operates effectively and safely. Here are five basic ways to help keep wire grounding and connections safe:
- Adjust the Grounding Rod for Proper Fitting
In compliance with all required standards, ensure that the grounding rod is copper or galvanized and that it is sunk into the floor if it is less than eight feet in length.
- Wiring Grounding System Has to be Re-indexed
It is a good practice to use plain, green, or equivalent color cables for grounding. All covered conductors should be embossed, marked, or easily identifiable to prevent any confusion between live wires and neutral wires during installation or maintenance works.
- Always Fasten the Connections
The objects that fasten two or more pieces of the component together must be adequately secured, as any contact resistance that results may lead to arcing fires and overheating. Each particular fastening has a specific torque value that must be satisfied for tightness, and these should be checked periodically to ensure evenness.
- Always Make It Certain Not To Overcapacity
Circuits should not be overloaded by bundling multiple appliances for use. Worn-out accessories should be replaced with new fittings unless they are fully functional and utilized adequately without any anticipated physical or mechanical stress conditions.
- Engineer some ground fault circuit interrupters.
When building in any damp environment, such as showers, sinks, or outdoors, in Areas with water use, it is essential to install ground-fault circuit interrupters, especially in areas where such safety precautions are suitable. They can safely disconnect the power in the presence of a ground fault. This, in turn, significantly reduces the incidence of potential electric shocks.
Choosing the Right Twist Lock Outlet
When selecting an appropriately adjusted twist lock receptacle, it is essential to follow several criteria to ensure proper protection, compatibility, and functionality. Firstly, master the technical specifications of the connected equipment, namely, the voltage and amperage they require. As these receptacles are designed for specific loads, it is recommended to comply with the relevant requirements to avoid unnecessary energy loss, overheating, or, worse, equipment failure. Additionally, it would be beneficial to purchase heavy-duty infrastructure utility plugs in case they are used in commercial or external sites with higher levels of exposure to physical impacts, such as wear and tear. Equally important, these plugs should also be made so that the twist lock plug science fits just like a key into a lock, and none of the measurements or load ratings differ in the lock. Lastly, purchase only products that have been certified for use in accordance with specific safety standards, such as those bearing the UL or ETL brand, to avoid potential fire hazards and other construction-related issues.
Weatherproofing and Heavy-Duty Options
In applications that require suitable weatherproof and heavy-duty options for twist-lock connectors, understanding the working conditions of the connectors is crucial. If the plugs will be used outdoors or in industrial settings, opt for plugs made of materials such as thermoplastic and rubber, which offer protection against moisture, dust, and extreme temperatures. Being of such a high standard, most weatherproof plugs have IP ratings such as IP65 and above to deliver and protect against water and dust dissemination. Additionally, heavy-duty options often feature tougher contacts and external shields to minimize impact damage and ensure operational longevity. By employing the factors enumerated so far, it is possible to withstand normal as well as improve duration in mightily adverse conditions.
