ABYC Electrical Safety Standards: Guidelines for Safe Boat Wiring and Systems

What is Electrical Leakage?

Electrical leakage occurs when electric current deviates from an intended path to an undesirable location in the system or environment rather than flowing along the active conducting path. In almost all cases, the most common reasons for leakage are: weak, damaged, or fused insulation, irregular installation, or corrosion in the electrical system. Leakage through water—such as a marine environment—provides much better transmission of the leaked electricity as water containing salts releases ions which are very good at conduction; in the most extreme scenarios—electricity flowing through water can be extremely dangerous.

The effect of electrical leakage can be catastrophic: not just for human life safety, but for marine life as well. In the presence of water, human life can be come under severe threat from electric shock; at best, the shock can prove most painful, and at worst, even deadly. Besides, there is the catastrophic possibility of equipment malfunction, breakdown, onboard system damage, or escalation of maintenance cost. These reasons reiterate the importance of timely detection and remedy.

Electric leakaage is undeniably crucial due to safety assurance around marine areas. There are a set of steps every responsible owner can take to insulate and maintain an electrical system in his/her boat. Features such as ground fault circuit interrupters (GFCIs) are beneficial in its detection and obstruction. This would likely feign a mechanism that could properly protect against electrical leaks, which may lead to threats against vessels’ owners and operators at-a somewhat lesser degree.

Common Causes of Electrical Leakage

To maintain safety standards, on the boat, one must be aware of the consequences related to electrical leakage, which may sometimes lead to deadly wildcard-expelling one possibility or another, such as electrocution, and also damage to onboard systems. Insight into what causes electrical leakage means you would be better equipped to nip it in the bud entirely, repair, or prevent it. This is a list of very common sources.

Following these most common causes wilfully, following the updated safety guidelines, boat owners can manage to keep their vessel safe electrically and, in turn, families and material estates will be saved.

Potential Hazards of Electrical Leakage

Electrical leakage hazards are hazards waiting to happen even for select sites such as any location around water like marinas, piers, and vessels. Electric shock drowning (ESD) is the most severe risk, which is caused by the flow of electrical current through water, inhibiting swimmers’ ability to breathe and move muscles to swim, making drowning the result. This hazard is accentuated when defective or under-grounded electrical systems jettison stray current into water.

Another hazard is the possibility of electrical fires occurring inadvertently. Leakage out of faulty wiring or connections through grounding sparks could catch on other flammable material, which is worrying in an enclosed area in a boat, with volatile fuels for igniting, threatening life and property.

Moreover, continuous electrical leakage could lead to equipment damage and power failures . slight current interference with sensitive electronics can cause so much damage that they may be hard to repair or need replacement later on. Hence it seems necessary to be aware of the risks through regular inspections and safe operation of electrical systems.

Overview of ABYC Safety Standards

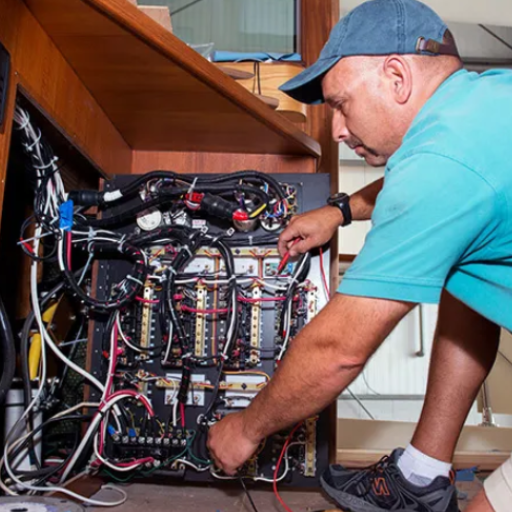

The safety of electrical systems in boats is an area focused on by the American Boat and Yacht Council (ABYC) safety standards. The idea is to maintain some level of electrical safety first and all these are there for the purpose of safely designing, installing, and maintaining marine electrical systems. Installations may therefore not include common hazards to life and property, as in electrical shock, fire, and malfunction with one system wiring. In forcing the principles, boat owners and operators enable passengers, crew, and equipments to remain safe.

The fundamental series of ABYC standards specifies good wiring, the use of well-marked and properly rated circuit protection arrangements, and the need for regular exams to spot or expose risks. All these standards enrich the safety of electric installations at a very high level with high standards of checking serviceability. The importance of good connections, corrosion-resistant material, and good grounding and bonding must be emphasized to prevent faults and failure in the marine environment.

Preventive maintenance is a vital part of maintaining the electrical system. Routine inspections can then reveal the general degradation of parts or the probable sources of emergent hazards. Following ABYC protocols can be a sanctified task of ensuring longer servicing of electrical installations and maintaining the safety of those on board. In essence, these are benchmarks toward establishing reliable and compliant power systems onboard sea craft.

Importance of Compliance with ABYC Standards

Compliance with ABYC (American Boat and Yacht Council) is a necessary condition for safety, dependability, and efficiency of electrical systems on board a marine craft These requirements are generated in response to extensive input and collective experience from every sector of construction, each obligation—whether wiring, further overcurrent security, grounding, component installation—pedantically drafted. The observation of these standards certainly minimizes potential manifest calamities from electrical systems which affect passenger safety in their own stead.

The way boat owners and operators will contribute toward more long-term certainty and better functioning of their marine electrical systems is by conforming to ABYC standards. Maintenance of marine systems is undeniably facilitated by systems that have been built and maintained to these criteria, and from time to time they ensure that the latter, at greatly reduced system-failure rates and resultant expensive repairs. Not only that but so many structured and purposeful interactions among the system components furthermore most likely ensure performance that is reliable for the marine environment irrespective of the prevailing conditions that confront it.

Compliance with legislation and rules is a crucial concern. ABYC standards are the most recognized in the marine industry, and surveys for safety are often done on them. Institutions and certification take inspiration from them, but their consistent breach might lead to penalties, convict, or abort operations. Consequently, maintaining such high standards not merely assures perfect performance but also meets a vital provision of the law for safety and reliability on each voyage.

Comparison with NEC and Other Regulations

When comparing ABYC standards to the NEC and other guidelines, it is necessary to understand their primary focus and application to some extent. ABYC standards are drafted with specific considerations for marine and boating purposes, having to face unique problems that arise from corrosion, confined spaces, and water ingress. The NEC, on the contrary, reflects diverse installations across a vast array of sectors in a much broader context that does not take into account the marine environment. While safety is an overarching theme for both, ABYC standards are issue-specific and offer specialized guidance to help maneuver the additional risks imposed by the marine environment.

One of the primary differences is in their coverage and adaptability. NEC targets the general concept of electrical safety within buildings and industrial systems, creating a general acceptance with access regardless of marine-specific perspective; the ABYC, on the other hand, collectively target a wider spectrum of compliance as per all critical criteria for boats, providing the electrical grounding with arguably wider scope than NEC. It may be further deduced that ABYC would be more comprehensive and directly connected to the marine industry. However, there is also likely some overlap in application of marine systems operating after the NEC, especially within shore power connections.

In conclusion, it is essential to obey ABYC to meet the safety and performance standards necessary for the operation of ships, while some of the more generalistic regulations, such as NEC, provide an essential backbone regarding safety. They may, however, not always apply what is directly required, not until this generalistic code may be supplemented by such a maritime code as ABYC to address directly the specific needs of ships. Indeed, knowing well the differences and complementary nature of these two standards will be of utmost importance to underpin safety and ensure regulatory standards for maritime operations.

Essential Tools: Clamp Meters and ELCIs

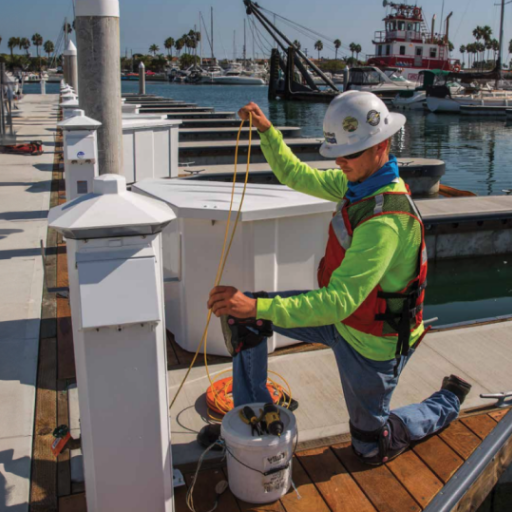

Maritime operations do not see the need for inspection and maintenance for electrical leak protection without any use of clamp meters or Equipment Leakage Circuit Interrupters (ELCIs). Clamp meters, as the name suggests, measure the flow of current through conductors without needing any sort of physical contact-such a useful tool for detecting stray currents and ensuring the power system is performing, which in turn mitigates dangers such as short circuits or company fires from electrical faults.

ELCIs, on the other hand, are designed to find and alert of fault currents being developed because of electrical leakages. They trigger at a fairly normal level, automatically disconnecting an electrical network and thus make a major contribution to safeguarding life and property. ELCIS must be arranged correctly and tested at regular intervals to function effectively.

Using a GFCI for Safety

A Ground Fault Circuit Interrupter (GFCI) ensures the safety of users in that it suspends electric current when the mechanism senses a hazard, which is a leak of an electric current into the ground. GFCIs always seem indispensable to remove hazardous electrical conditions where a person who approaches electricity, while at the same time, water, is also under immediate shock of possible immediate electrical danger, as in bathrooms, kitchens, or outdoor locations.

Having assessed the flows in the circuit against a prescribed limit, these devices can recognize fluctuations in electric current. Whenever the leak produces an inequity exceeding this rated value, the Ground Fault Circuit Interrupter reacts by shutting off instantly. This happens at a lightning-in-fast-speed swiftness of milliseconds, thereby potentially saving the victim from fatal danger. It is a good routine to test the protective capability of GFCI using its “test” and “reset” buttons in order to keep it up to date.

“The installation of GFCIs is an important consideration,” since no-guaardward means arcing and electrocution. Building codes mandate GFCIs be placed in various types of indoor environments. Since electrical standards must be obeyed as per the design regulation, it would prove very helpful to recruit a professional electrician. By setting up GFCIs into your electrical equipment you ensure safety rightly.

Understanding Shore Power Cords and Pedestal Connections

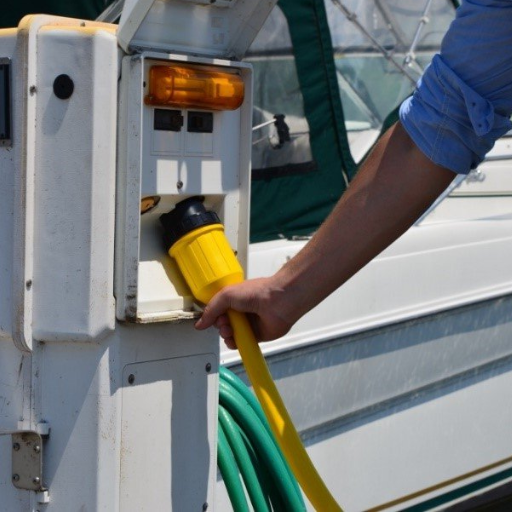

These are of vital importance when it comes to providing power for vessels in a marina or out docking. This system is meant to feed electricity from shore, which is used to power appliances, lighting, and systems on board, so such amenities give the vessel comfort and functionality without directly depending on the generator or battery aboard. Cord operation and service requirements ought to have gone through so that hazards such as electrical fires, surges, and damaged equipment.

Using cords rated for an appropriate amperage is paramount. In marine environments, the cords have to be built with weatherproof Marine connectors that are resilient to moisture, corrosion, and over-exposure to harsh elements. To prevent damage, wires, or twisted wires, an examination of the cords is therefore in order before use. The instant some incipient signs of wear become apparent, the cord must be replaced. Any faulty cord would give way to electrical hazards that pose greater risks.

In correspondence to the shoreline power connection, the individual ought to unplug the undersized or internal marine power cable while the bulkhead is still plugged onto the dockside receptacle. Therefore in maintaining the marine power cable, one is ensuring the proper installation of the molded plugs from both the boat and the dockside receptacle. The grant of the use of shore power systems must observe the aforesaid safety measures to ensure an electrical hazard-free experience while having always available and uninterrupted shore power.

Preparing the Boat’s Electrical System

Performing the Leakage Current Test

To test the leak current, connect the right type of leak current tester to the boat’s shore power inlet. Turn off all breakers in the boat’s electric panel to avoid potential hazards and secure accurate measurement by isolating its onboard circuits.

Once shore power is connected, switch on every circuit breaker individually while watching the tester for leakage current. Keep a close eye on readings during activation of each circuit in order to establish whether excessive-trouble leakage current is flowing. A current leak above 30 mA usually raises worries requiring closer examination and problem fixing. Make sure that faults are properly documented for troubleshooting and rectification.

Focus on high-wearing areas coupled with potential water hazard or busy parts for leakage inspection resulting from possible fault wire,” if you ever perceive a problem for current leakage in the vessel, change the boat wiring to look for any electric wire wounds, corrosion, and misuse of power. This highlights that once any problems are identified and fixed, the on-board systems will be safe with fewer chances of electronics hazard compared to safety protocols that assure seaworthyness before operation.

Interpreting Test Results

The interpretation of the results of the tests for electrical safety on a vessel necessitates the focus on certain vital indicators that may point at risks. Start with a look at insulation resistance measurements, since low-resistance values may be a sign of dirty wiring or a creepage issue. A good-level insulation resistance reduces risks of electric faults and shocks, thereby validating safer vessel operations.

Continuity tests for all circuits should also be considered. Generating potential continuity can confidently assert that the active electrical paths are safe and unbroken and ready for the job. Finding discontinuities means the wiring-in most cases must be set to review and inspect the wiring, connections, and terminal and so on for signs of harm, deteriorating condition, or rust. Addressing these problems immediately can assist in minimizing the possibility of system collapse.

Always review the results of the grounding and bonding test to ensure that the grounding within the vessel is sound. Loose grounds can cause stray currents, thereby increasing risks. A practical evaluation of this test, always accompanied by routine systems maintenance, is necessary to see to it electronic systems on board work safely and effectively under all conditions.

Regular Maintanence of Electrical Systems

Regular maintenance of electrical systems is paramount in keeping them secure, dependable, and long-lasting. In this regard, the most important move among many is the scheduled inspection to detect wear, corrosion, and damage on wiring, connectors, and components. With the early detection of problems, they can be fixed before they further degrade and lead to failures. This favors the reliability of the whole electrical system.

Also, it is best practice to ensure proper cleaning of electrical equipment and connections. It also helps to provide some protection from using resistors like dust, moisture, and other fine particles that may result in short circuiting or diminishing the system’s performance while further shortening its lifespan. Cleaning and sometimes sealing the parts helps to prevent wear while making the instrument stronger against outside influence.

Lastly, testing the functionality of critical circuit breakers and fuses with a view to ensuring their operation within intended ranges would prevent the electric leak or unsafe problems. Maintenance, proactively always, limits possibilities of breakdowns, and increases service life of any electrical system on a boat.

Training for Boat Owners and Technicians

Owing to the utmost importance that sets training in light, it is essential to ensure safe and efficient vessel running not only for the sake of boat owners but also for their good. For boat owners, the basic training includes not only navigation and safety but also basic maintenance. These skills will enable the owners to understand their boats, act confidently, and may also prepare them to react to emergencies wisely. Numerous training programs are available from local groups, while maritime safety authorities offer many hands-on experiences and practical knowledge.

As for the technicians, training on their part gets specific to more areas, such as repair, inspection, and smooth running of other marine systems. This will involve contact between those electrical systems, engines, and hull integrity. Technicians are almost required toget certification courses or vocational training in order to keep them abreast of industry standards and the expected technological advancements. The technician, with these skills, thus plays a critical role in ensuring that boats are always seaworthy and compliant with the regulations.

Grown around these are the solid fact that technological advancements are first-rate and concepts relating to safety continuously grow. The need for refreshers, specialised practical training or courses becomes quite snippet under the circumstances when the boat is of a different, more intricate nature. For technicians alike: the one element they miss most is professional development; for them, workshops and certifications are something special to develop competence further in this art. Education is an evident need for each boat owner and technician to participate in a common desire towards safety and increased reliability in boating.

Q: What is Boat Electrical Leakage Testing: ABYC Standards Guide and why is it important?

A: This guide, among other things, presents an overview of leakage current on vessels and the ways to control the current to stay within the limits prescribed by ABYC and the national electrical code. The guide will not only facilitate the work of marine electricians and marina managers but also help them in the following areas: spotting leakage into the water, eliminating water currents that could be dangerous to persons, and confirming marine electrical safety.

Q: How do you measure leakage current on a boat and what devices do you use?

A: Measurement of leakage is done using either a leakage current measurement device (like a leakage clamp meter or a leakage clamp around the shore cord, or clamping the entire shore) or an ammeter/milliampere-sensitive meter that can measure milliamps indicating leakage. Besides, the test may involve clamping around hot and neutral conductors and checking for current flow under the operation of certain systems, e.g., a battery charger or genset.

Q: What are typical acceptable leakage values and how many milliamps are dangerous?

A: Leakage values are acceptable only if they are in accordance with ABYC guidance and the boat’s protective devices; low milliamps are the typical limits. Levels above a few milliamps can signify a fault condition or galvanic interaction, such as a person being shocked by higher currents in the water. Identifying and resolving the source of leakage using a leakage clamp meter to bring it down to the level of safety is mandated, and devices like ELCl/ELCI/GFPE may trip at specific milliampere settings.

Q: How do you perform a shore power leakage test for a boat that will utilize shore connections?

A: To conduct a test for a boat that will use shore power, you need to clamp around each conductor of the shore cord and the entire shore connection to check for the leakage current. Make sure the shore cord, hot and neutral, and safety ground wire (green wire) connections are correct, and look at the current between the white and black conductors to see if any imbalance exists. Current will go into the water or if you notice leakage into the water, find the cause— it could be malfunctioning electrical appliances, battery chargers, or gensets—and fix it before connecting at the marina.

Q: What role does a galvanic isolator or ELCI play in preventing leakage into the water?

A: Both the galvanic isolator and the ELCI are crucial in preventing both galvanic and fault currents from traveling through the safety ground wire or the engine block and into the water. The former prevents low-voltage DC galvanic currents from passing, while the latter detects fault conditions and opens the circuit if leakage into the water exceeds safe milliamps. The galvani isolator and ELCI/GFPE are thus part of the best practices as pointed out by the ABYC Standards Guide to ensure marine electrical safety.

Q: How do you identify whether leakage is coming from one boat, dock electrical, or marina equipment?

A: Identification of the source will be done by a marine electrician who will clamp around the shore cord and individual conductors, and then disconnect the boat from the shore supply to see if the currents in the water stop. Clamping the entire shore and individual cables helps find out if current comes from the dock electrical, one boat, or the marina distribution. Measuring current flow and isolating equipment like battery chargers, gensets, or inverters will help to determine the faulty electrical device.

Q: Can DC system components cause AC leakage into the water and how is this tested?

A: The answer is affirmative; DC system faults and improper bonding can sometimes create routes that end up leaking AC into the water through the engine block or other components. To test this, one needs to check the safety ground wire continuity by measuring the imbalance between line and neutral and using a leakage clamp meter on DC return paths and around major conductors to measure the currents involved. Besides, marine electricians will be looking at the battery charger, inverter, and other devices that may be connected to shore power for leakage.
