Proper equipment is pivotal when it comes to safely and efficiently powering your boat at the dock. Marine shore power cords, plugs, adapters, dock connectors, and other similar components are of paramount importance because they not only guarantee that your vessel gets a steady supply of electricity but also that the supply is suitable for various purposes like charging batteries, maintaining critical systems or running onboard appliances. However, for both experienced mariners and new ones, the variety of options and specifications can be quite overwhelming. This guide will equip you with the knowledge of these necessary tools, making it easier for you to select the right gear that will fulfill your specific boating needs. We will discuss everything from finding the right cord length and amperage to looking into the various adapter possibilities, so you can continue to be connected without risking safety or violating regulations.

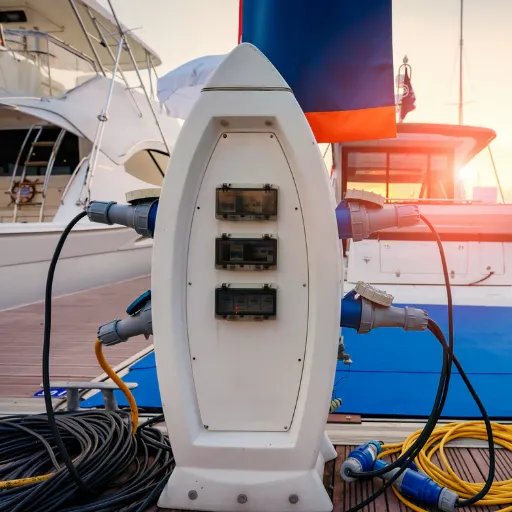

Understanding Shore Power
What Is Shore Power?
Shore power is the power supply system that enables a boat or vessel to draw electrical power from the land or dock when it is moored. The boat can use power up for the onboard equipment like lighting, heating, and even air conditioning, and appliances, thus the need for the engine or onboard generators is eliminated. The main advantage of shore power is a consistent, quieter, and more eco-friendly changeover from running fuel-powered generators.
When the vessel is connected to shore power, usually a specific electric cable is employed to connect the boat’s power system with the dockside power outlet. The connection provides the boat with AC (alternating current) electricity which is the same as the electricity in homes. The compatibility of the boat’s electrical system with the shore power in terms of voltage, frequency, and amperage is very important for safe and efficient operation.
Shore power usage not only keeps the batteries onboard charged but also leads to a reduction in fuel costs and noise pollution, thus making it a preferred option during long periods at the dock. It also increases the convenience of boaters as they can easily use modern amenities and important equipment. Proper safety precautions such as secure connections and circuit protection devices are very important for making sure that shore power is used safely and effectively.
How Shore Power Works
The shoreline power system connects a boat to an electrical power source on land using a specially designed power cable. This connection will allow the boat to get its power straight from the shore electric grid thus eliminating the need to use the onboard generators. The infrastructure of a shore power system consists mainly of the shore power inlet on the vessel, the power cable, and the electrical socket on shore.
During the dock time, the sailors will plug the shore power cable into the shore socket and then connect it to the ship’s inlet. The electric current travels from the shore power source to the vessel’s electrical system. This power is then shared between the different systems and devices like air conditioning and refrigeration, lights, and battery chargers. Using shore power, boats can stay connected with the essentials and even enjoy some luxuries without being reliant on fuel or generating emissions.
The system is made safe with the inclusion of features like circuit breakers, grounding wires, and voltage regulation among others. Such measures not only support the boat but also the crew members in being sheltered from electrical disasters like surges, short circuits, or fire risks. Never underestimate the importance of safety regulations and inspecting connections in preventing accidents and extending the lifetime of the shore power system.
Benefits of Using Shore Power
Using shore power provides large environmental and economic advantages. By hooking up to an external power source, ships can lower their dependence on the onboard generators, which are generally the ones that burn the most fuel and give off the most pollutants. This change not only lessens the amount of greenhouse gases, but also the amount of air pollutants, all of which result in cleaner water and reduced environmental impact. In addition, during the time generators are not being used, boat owners can save on the costs of fuel and maintenance, thus making shore power an affordable long-term solution.
Another major benefit of shore power is that it enhances peacefulness and quietness in the marine environment. The noise from generators can not only annoy but also disturb fish and other aquatic wildlife, nearby town and city people, and sometimes even the boat crew. Shore power brings about the cessation of this noise, thus ensuring a more relaxed environment both on land and underwater. This improvement in the quality of the surrounding conditions benefits not only the boat owners but also the other living things that share the marine ecosystem.
Furthermore, shore power resolves issues of convenience and operability for ship owners and crews. An uninterrupted and dependable supply of power makes it possible to operate onboard systems like lighting, cooking, air conditioning, and communication equipment constantly, without the interruptions that generators sometimes cause. This constant supply not only ensures comfort and safety but also reduces mechanical systems’ wear and tear, thus prolonging their service life.

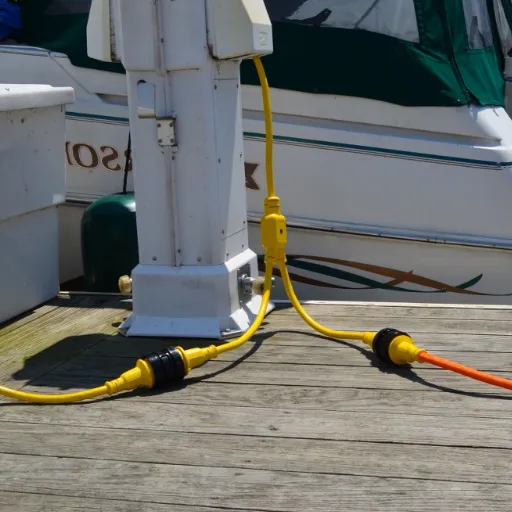

Components of Marine Shore Power Systems
Shore Power Cords
Shore power cords, a vital part of a marine shore power system, establish the physical link between a ship and the power source at the dock. They are made to provide electrical power safely and effectively, thus allowing the ships to have access to shore power for their onboard operations. Manufactured from tough and weatherproof materials, shore power cords endure the most challenging marine conditions, which include prolonged exposure to moisture, salt, and UV rays, thus ensuring reliable operation.
Compatibility with various electrical standards and power ratings is one of the most important characteristics of shore power cords. These cords are offered in various lengths, amperage ratings, and connector configurations in order to correctly power up ports with varying power requirements. Taking the right shore power cord allows not only electrical safety but also the best power delivery that cuts down on the risk of power interruptions or equipment damage.
In the case of shore power cords, they must be properly connected and adequately maintained to ensure safe usage. Regular inspections of such cords will help in tracing any signs of wear and damage that could hinder their performance. Besides, if they are not in use, proper storage will prevent unnecessary wear and tear and thus prolong their lifespan. Making sure that the power connection between the ship and the dock is tight will also ensure that the power delivered is safe and reliable.
Shore Power Adapters
Shore power adapters are the essential component connecting a dock’s power outlet to a boat’s electrical system. They enable different types of shore power sources to match the electrical needs of various ships. They also make sure that power is being transferred safely and effectively, even when the shore power outlet and the ship’s plug are not directly compatible through the use of the adapter.
One thing to consider when using shore power adapters is the matching of the adapter voltage and amperage requirements of the vessel plus the dock’s power supply. While choosing an adapter with the right specifications, it is possible to avoid overloading, overheating, and damage to both the adapter and the onboard electrical system. It is also possible to have an adapter with features like circuit breakers as part of the safety measures.
Proper handling and maintenance of shore power adapters are necessary to guarantee safety and longer life. Before every use, check the adapter for any signs of wear or damage and, when not in use, keep it in a clean, dry place. Moreover, secure and tight connections at all points are important to avoid electrical faults or interruptions. Following these practices will enhance the safety and reliability of your shore power installation.
Power Plugs and Connector Types
The very basic function of power plugs and connectors is to provide the necessary means for electricity to be transferred properly and safely. Different varieties of them come up for different market needs, that is, different voltage and current requirements as well as regional standards. The most popular types that are in use all over the world include Type A, Type B, Type C, and Type F, etc., and the major difference among them is pin configuration and compatibility. It is definitely necessary to choose a plug or connector that is compatible with the electrical system in use so that damage or safety inconveniences can be avoided.
The main factor that differentiates types of connectors is their design, grounding system, and the voltage they can work with. Type A and Type B plugs are the most common in North America and they operate at 120 volts, while Type C and Type F are in use all over Europe and they are 220-240 volts. These distinctions emphasize the need to be aware of the local electrical standards when deciding to either use power plugs or to travel with or operate international equipment.
Safety must come first when selecting the right power plug or connector. Make sure that the connector is rated for the load of the equipment so as to avoid overheating and electrical faults. Moreover, see to it that you take the environmental conditions of use which may include moisture or heat and find out if the plugs need to have protective features such as insulation or waterproofing. It is only through adhering to these pointers that one will be able to make safe and long-lasting electrical connections.

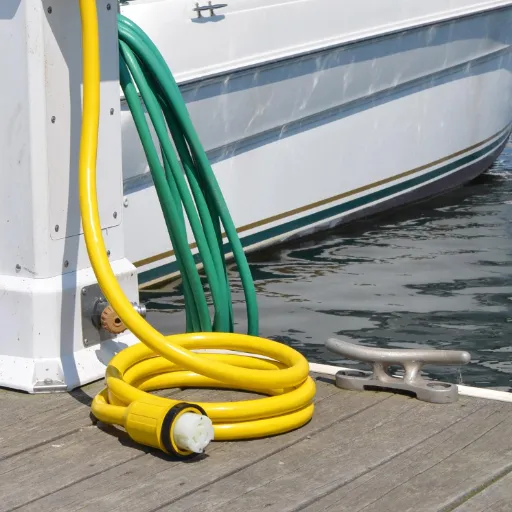

Installation of Shore Power Connections
Planning Your Shore Power Setup
To make your shore power installation, it is very important to take into consideration the individual needs of your ship, the suitable electrical systems at the dock of your choice, and the general safety regulations. Start by determining the power requirements of your boat or RV, including the amp and volt ratings for such things as lights, appliances, or A/C systems. The majority of marinas and campsites supply electricity through standard outlets, which are usually 30-amp or 50-amp services at 120/240 volts. Make sure that there is compatibility between your onboard electrical panel and the shore power pedestal so as to avoid situations of overload or wrong connections.
Then, go ahead and determine the right type of cable and connector for your installation. Shore power cables are to be of marine-grade quality, with certification for outdoor use, and having resistance to ultraviolet light, water, and chemical substances. For instance, a cable of marine-grade quality that has a wire gauge of 10 for 30-amp systems or a wire gauge of 6 for 50-amp systems is recommended. Statistics indicate that the use of either improper or faulty cables is responsible for a large percentage of shore power-related accidents, thus pointing out the necessity for strong and safe cords.
Besides, supply your installation with the appropriate circuit breaker and surge protector to prevent the occurrence of voltage spikes that can ruin sensitive onboard electronics. A lot of contemporary marinas further provide ground fault protection that is an essential feature in the process of eliminating electric shock risk.
Last, but not least, draw the layout of the access to the shore power pedestal, taking safety and convenience into consideration. The cable length should be such that it allows for easy access without too much slack which can cause tripping. Regular maintenance and inspections are a must; for instance, one research project found that conducting regular inspections of shore power cables and connectors can bring down the risk of failure by as much as 60%. By taking into account these very important factors, you will be able to have a shore power installation that is safe, efficient, and meets your needs for operation.
Common Installation Procedures
The establishment of a reliable and safe shore power installation can be achieved through following of the established procedures and practices set by the industry. Below is a list of important steps and considerations for the successful carrying out of the installation:
- Site Assessment and Planning: Before any kind of installation can be undertaken, a detailed site assessment should be done. The position of the shore power connection is to be determined by the size of the vessel, its power needs, and environmental considerations. Recent studies indicate that tailored installation schemes that fit the power requirements of vessels can up the efficiency of the system by as much as 30%.
- Selection of Appropriate Components: Use cables, connectors, and circuit protection devices of good quality that conform to safety and performance standards comparable to IEC/ISO/IEEE 80005-1. Make sure that the cables are adequately rated for the load so as to avoid overheating. It has been stated that about 40% of electrical failures come from use of incorrectly rated components, thus, the right selection becomes a top priority.
- Load Analysis: A comprehensive load analysis should be done to find out how much power is needed in total and so that the power system can also handle peak loads. For instance, huge vessels may require the shore power systems to provide up to 6.6 kV or more, especially at commercial ports.
- Installation of Protection Devices: Ground Fault Circuit Interrupters (GFCIs) and surge protectors should be installed to reduce the risks associated with electrical. It has been found that relating such devices can lower the chances of electrical shocks by more than 70%. Furthermore, the right grounding (earthing) techniques need to be applied to safeguard the electrical systems as well as the personnel from harm.
- Cable Management: Cables should be routed and positioned in a manner that is free from trip hazards and will not undergo excessive wear and tear. Weatherproof cable sheathing and connectors should be employed to extend the operational life in extreme marine environments. Also, modern technology implies that UV-resistant and saltwater-resistant materials may double the life of cables.
- Testing and Commissioning: By adhering to these methods, you are also incorporating the latest advancements in technology, which will not only keep your shore power system safe and efficient but also environmentally friendly, thus complying with the steadily increasing global demand for sustainable maritime practices.
Best Practices for Installation
The application of best practices for shore power system installation is very important to make sure that the system is reliable, safe, and in compliance with environmental regulations. In the first place, proper site assessment and planning should be prioritized. The location should be evaluated in a very detailed manner, taking into account factors like spatial limitations, the state of the environment, and the requirements of the electric load. A comprehensive plan virtually guarantees that the installation shall be made as per the particular needs of the facility and thus fewer problems during the operation.
Secondly, high-quality and made-for-the-purpose materials should be used. Choose cables and connectors that are resistant to UV and can handle saltwater exposure, especially in areas that are next to the sea. Employ safety systems such as circuit breakers and grounding practices to ensure the safety of operations. Also, the materials should be made in accordance with the electrical and environmental standards applicable so that the approval period can be shortened and the life of the materials increased.
Last but not least, it is necessary to hire skilled people for the installation. Electricians with certification and experience in the shore power systems are the ones who will install and commission the system properly. Testing and commissioning along with thorough checks will make sure the system is running efficiently and safely. Following these best practices will not only enhance system performance but will also lower the risks and at the same time, support the ongoing sustainability of the maritime industry.

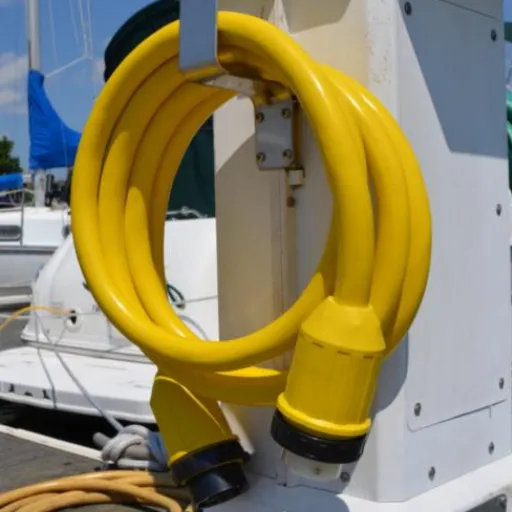

Operational Challenges with Shore Power
Common Shore Power Issues
Shore power is a system that provides power to ships while they are docked, and it can be a major technological solution for the maritime industry, but still, there are challenges in power supply, infrastructure, costs, and especially in the communication between ships and ports. Here are some of the most common issues:
- Limited Infrastructure: Most ports around the world do not have the proper infrastructure to operate shore power systems. A statement from the International Association of Ports and Harbors (IAPH) mentions that only less than 10% of ports have shore power systems running at the moment. A port wired for shore power will require the investment of not only a considerable sum of money but also time as upgrading the existing port infrastructure will take long and may end up being quite costly.
- High Installation Costs: Ships’ retrofits and the construction of shore power systems are very expensive. The International Council on Clean Transportation (ICCT) provides a rough estimate that the installation of shore power systems for a large container ship will cost around $500,000 to $1 million. This price range makes it unfeasible for smaller shipping companies or ports located in developing countries to invest in such systems.
- Compatibility Between Vessels and Ports: Countries’ different voltage and frequency standards can lead to a situation where a vessel and a shore power system cannot work together. For example, while in Europe, ports normally run their electrical systems at 50 Hz, in North America they use 60 Hz systems. If there is no proper standardization, vessels might have to invest in more equipment or conversion systems, which will further complicate things and increase their costs.
- Power Supply Availability: Shore power systems demand a very reliable and large-capacity electricity supply, which may not always be achievable especially in places with energy shortages or with old grids. Furthermore, the electric supply of the local energy grid can be strained by the large amount of electricity that is required to power the ships while they are still docked, which may lead to power outages or increased grid demand charges.
- Environmental Impact of Power Generation: The local electricity network’s cleanliness affects the environmental benefits that shore power can provide since it reduces emissions coming from the ships. The European Maritime Safety Agency (EMSA) has also reported that the overall pollution reduction benefit of the system will be very small if the local grid largely depends on coal or fossil fuels.
However, global efforts are ongoing to provide a more standardized system, better funding for green energy, and more financial support for ports and shipping companies as an incentive to address these issues. Only when these problems are resolved, will the widespread adoption and success of shore power systems in the maritime industry as a green solution be determined.
Safety Considerations
Safety is a major consideration when implementing and operating shore power systems. Proper procedures for connection and disconnection are the most important steps to take to keep electrical safety hazards at bay. Electric shocks, short-circuits, and malfunctions are all accidents that could result from the wrong handling of the systems, so proper training of the personnel is a preventive measure that reduces the risk of accidents. Strict safety regulations have to be followed by ports and vessels to ensure that all equipment is up to the same standard in terms of compatibility and reliability.
Another point of emphasis in all safety matters is the protection of the system against external threats such as power surges or bad weather. All these aspects call for proper insulation, grounding, and maintenance, which will not only serve to protect the systems but also prove more cost-effective in the long run. Ports have to make it a point to inspect equipment and perform preventive maintenance periodically to counter the negative effects of wear and tear. There must also be emergency response plans in place to cope with any unanticipated events, thus safeguarding the personnel, vessels, and infrastructure.
Finally, international cooperation is an important factor in the process of formulating and sustaining safety criteria. When regulations are similar from one port to another and even from one country to another, the shipping companies can trust that their vessels will be able to connect to shore power systems without any risks. Channels of communication will be opened up, and various training schemes and the enforcement of safety measures will all contribute to the secure and successful uptake of shore power in the maritime sector.
Amperage and Power Supply Management
The adept management of amperage and power supply is categorically very important for the safe and efficient running of shore power systems. Amperage is the electric current measure that is transferred through the system, and it has to be in agreement not only with the vessel’s power demand but also with the port’s capability. By making sure this compatibility is in place, it helps to prevent the imprint of overloading the system or under-powering the critical equipment on board. The key safety mechanisms (including circuit breakers and monitoring systems) must ensure a balanced and secure power flow by being in place.
Ports need to manage power supplies in a uniform way by fixing the voltage and frequency settings and implementing measures that comply with international standards. As a result, the interconnection and operation of the ships from different places are smoother. It should be possible to manage the loads in a way that no-demand-supply imbalance is created in the system, and hence no accidents or equipment failures occur. Ports should also consider planning their infrastructures thoroughly during peak demand periods and this way they could perform consistently without running the risk of overloading.
System maintenance regularly and operator training, and electrical power supply management. It is necessary to have trained staff who can deal with possible electrical problems, help in emergencies, and carry out the routine checks on cables, connectors, and transformers. Spending on maintenance and ensuring electrical safety standards will enable ports and vessels to have dependable shore power operation while at the same time reducing risks and unplanned downtimes.
Future Trends in Shore Power Solutions
Emerging Technologies in Shore Power
Emerging technologies in shore power are being developed with a focus on attributes such as the effectiveness, sustainability, and expansion that go hand-in-hand with up upcoming megatrend of cleaner maritime operations. The major development in this regard is the active uptake of automated shore power connection systems. Such systems that are all about the connection and disconnection process get rid of the need for a human operator and thus, according to the company, ensure that a connection is made that is safe and efficient. When manual work is reduced through such technologies, shore power operation becomes fast and dependable, especially in ports with more traffic.
The other great breakthrough is the combination of renewable energy sources with shore power systems. Ports are finding ways of bringing on stream solar, wind and other clean technologies to the light of their activities. So not only does this change lower the total amount of carbon emission but is also in agreement with the worldwide environmental aims by making it possible to follow the regulations that are getting stricter. Furthermore, energy storage solutions in the form of modern battery systems are being adopted to make the most out of the renewable energy and give the supply power during the hours of the highest demand.
Last but not least, technical advancements in the areas of monitoring and maintenance are changing the way shore power is managed. IoT-enabled sensors and real-time data analytics are among the digital tools that allow maintenance of the electrical infrastructure through the company’s monitoring system. The implemented innovations not only help in spotting the possible issues but also enable the company to take proactive measures to avoid them; thus, they have a positive impact on the reliability of the company and its ability to minimize downtime. In this respect, these technological innovations promise the creation of a power supply ecosystem that is both strong and green.
Environmental Sustainability Practices
The planet’s health can be improved by environmental sustainability practices and human needs would be met in a responsible way. Such practices insist on cutting down the emissions, preserving resources and trashing the least. The company and organizations make use of methods like energy efficiency, use of renewable energy and recycling to ensure that the present actions do not affect future generations negatively. The environmental, social and economic priorities are thus balanced and the ecological preservation for a long time is looked for.
Among the many ways to make the world a better place, the most powerful and cleanest one is through the use of clean energy. The change from fossil fuels to solar, wind, and waterpower, the switch to renewable energy sources, and the reduction of greenhouse gas emissions, which are the main cause of climate change, lead to energy-efficient infrastructures and technologies that are also very important in the whole process of energy consumption reduction and the environment’s impact. These are not only reasonable but also highly adaptable solutions that allow every organization to do its part for global sustainability goals.
Besides that, cleaning and waste-minimization programs are crucial to keeping the environment clean. The efficient use of resources like water, raw materials and even energy keeps the production of waste at a minimum. A range of eco-friendly operations such as recycling, sustainable packing and responsible manufacturing are also employed to neutralize the impact on the environment. The industries that go for the adoption of these practices will not only live in harmony with nature but also create a socially responsible world. All these activities will eventually result in the creation of a robust ecosystem that is ready for the future.
Innovations in Marine Shore Power Systems
The innovative marine shore power systems which are known as cold ironing or shore-to-ship power are turning out to be the root cause of sustainable shipping operations. These systems provide electricity from onshore to the ships that have their engines turned off while docked. Consequently, there are considerably fewer greenhouse gas emissions and air pollution, which at the same time, are taking care of one of the major problems faced by the maritime industry. The cutting-edge technologies in this domain are aiming at efficiency, reliability, and compatibility with renewable energy sources as their paramount features.
The major step forward in this direction has been the establishment of uniform connection protocols, which allow ships from different fleets and geographic locations to easily hook up to the shore power. In fact, this unification not only minimizes the logistical and technical challenges faced in the ports for both the shipping companies and ports but also encourages greater adoption. Also, by the integration of green energy sources like solar and wind into the power grid that supplies the shore power, the environment is further protected and is in harmony with the sustainability objectives of the world.
Moreover, another big technology change is the automation and smart technologies that are used in the marine shore power systems. The new docking and plug-in systems are completely automated and are quickly and safely done with very little help from the workers. This is all made possible through the smart controllers, which not only direct the power but also keep track of the amount that is being consumed, thus maintaining operational efficiency. The combined effect of all these is that the maritime industry is confirmed to be committed to cutting down emissions and promoting a cleaner future.
Frequently Asked Questions (FAQ)
Q: What are marine shore power connections?
A: Marine shore power connections are the systems that supply electrical power to ships by linking them with the shore power grid while at the dock. These connections deliver a constant source of energy that can be utilized for various onboard systems and appliances such as air conditioning, lighting, and other electrically powered equipment.
Q: What are the common plug types used in marine shore power connections?
A: The common plug types for marine shore power connections are 30-amp and 50-amp configurations. The plugs are generally of the molded type that fitted with locking rings for a firm grip. Besides that, the connections also have pigtail adapters for compatibility with different receptacles.
Q: How do I determine the right amp service for my boat?
A: To know the right amp service for your boat, you need to consider the size and the power requirements of your onboard systems. Generally, for a large vessel, a 50 amp service is recommended; on the other hand, a 30 amp connection is sufficient for the mid-sized ones. A qualified marine electrician is the best person to guide you on this.
Q: What is the significance of using the correct power standards?
A: The use of the right power standards is of utmost importance in the scenario of marine shore power connections as it guarantees the connections work safely as well as efficiently. Misconfigurations could be damaging to the appliances by heat generation if one example is to be given. For example, a circuit available can provide either 120v or 240v; hence, it is not enough to just assume and find out who is in the middle of the elements.
Q: What tips should I follow for safe marine shore power connections?
A: For safe marine shore power connections, always connect to a 30-amp or 50-amp outlet that is the same as the requirements of your boat. Use high-quality extension cords that can withstand marine conditions and make sure they are properly sealed against water. Never create a chain of plugs and connectors as this can cause heat buildup, leading to a fire.
Q: Can I use a pigtail adapter for my shore power connection?
A: Yes, you can utilize pigtail adapters to plug your boat into various power configurations offered at the dock. But make sure the adapter complies with the amp rating of your boat, and always verify compatibility with the dock power pedestal before proceeding.
Q: How can I maintain my marine shore power connections?
A: The maintenance of your marine shore power connections consists of continually looking for physical damage and cleaning and de-corroding all the places where the connections touch. Some tips to remember are to examine the condition of the locking rings, see that the plugs with three prongs are used, and check if the female connector is tight.
Q: What appliances typically require marine shore power connections?
A: The marine shore power connection is necessary for appliance operation that includes air conditioners, refrigerators, and all other devices that consume a lot of power. Efficient connections are making it possible for these primary appliances to remain operational even during the time of docking.
Q: What should I do if my shore power connection is not functioning?
A: First and foremost, check the power pedestal on the dock when the shore power connection is not working at all. Inspect your extension cords as well as adapters for any damage. Call a qualified marine electrician if the problem continues and they will safely diagnose and repair any electrical faults.
