The GRWE801515 Series offers durable 304 stainless steel water and power pedestals with IP54 overall and IP67 socket protection for RV parks and yards.
The GRWE801515 Series features integrated water and power distribution pedestals designed for small-to-medium outdoor sites, such as minor RV parks, courtyard B&Bs, and scenic walkways. These pedestals support bulk procurement and systematic field deployment, serving as practical and space-saving utility options. Constructed with heavy-duty 304 stainless steel housings, they are built to withstand harsh conditions, including rain, high humidity, and UV exposure. With customizable electrical and water outlets, physical safety isolation, and integrated LED lighting configurations, the GRWE801515 Series ensures stable and compliant utility delivery for various outdoor environments.
The pedestals integrate both power supply and water delivery functions into a single compact housing. Depending on site needs, operators can choose from multiple configurations—including single water/power, dual water/power, and illuminated options—which helps reduce overall equipment clutter and optimizes campsite space.
To ensure reliable safety, the internal water and electrical systems are completely physically isolated. This physical barrier is combined with built-in leakage protection (threshold ≤30mA/0.1s), short-circuit, and overload safeguards to provide comprehensive protection for users and connected devices.
The complete assembly holds an IP54 protection rating, and individual electrical sockets are rated IP67 for reliable weather sealing. Engineered to operate consistently in temperatures from -30°C to 60°C, the pedestal is designed to handle seasonal temperature swings, heavy rain, and high humidity.
Constructed with a thickened 304 stainless steel column, the unit provides high impact and corrosion resistance in demanding outdoor conditions. This robust structural frame supports an expected service life exceeding 10 years, which helps lower long-term maintenance costs for campsite operators.
| Specification |
|
|
|
|
|---|---|---|---|---|

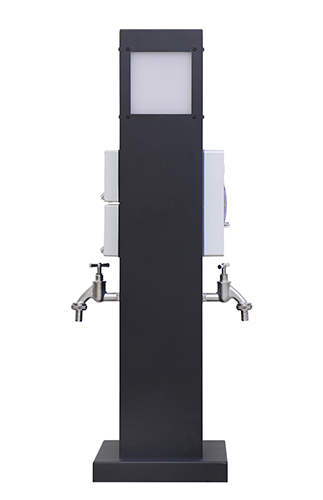

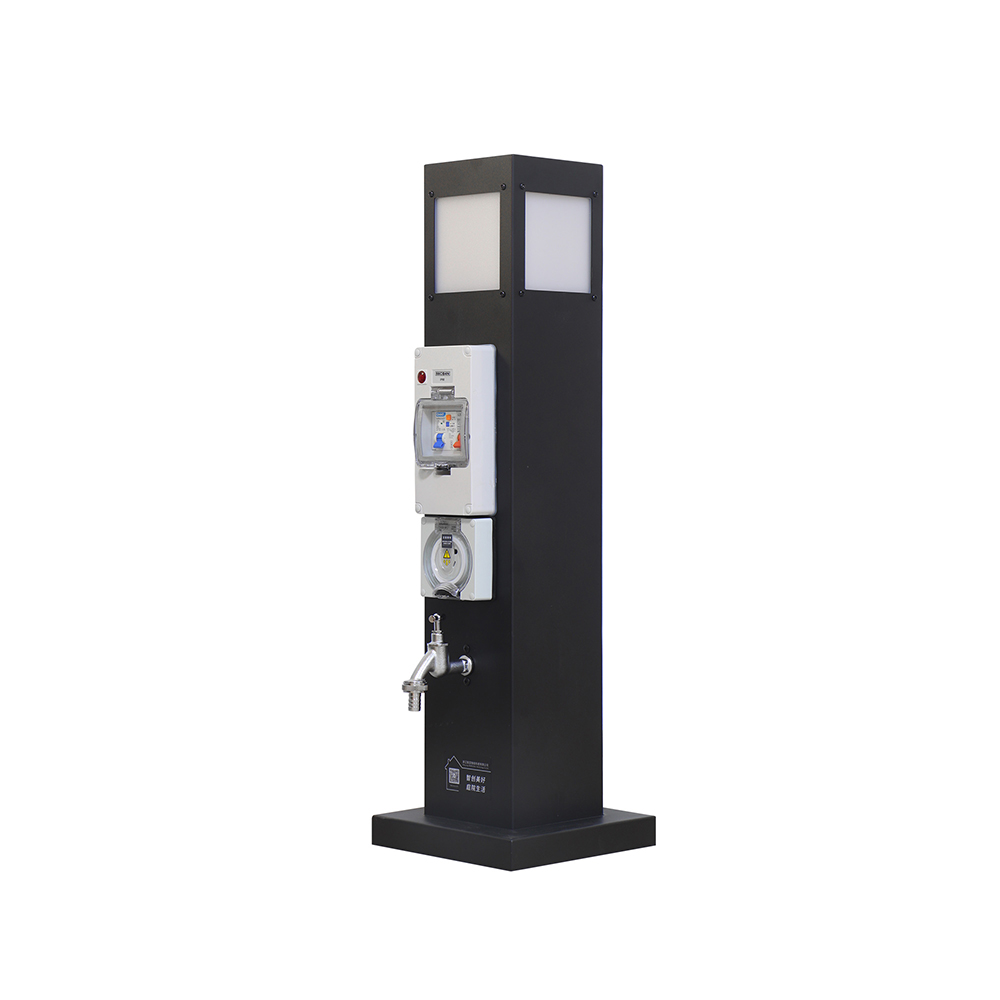

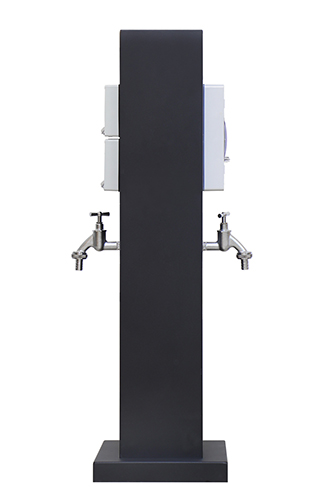

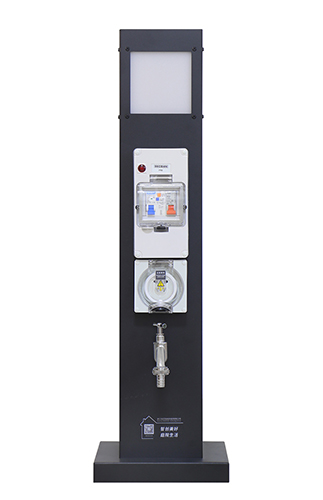

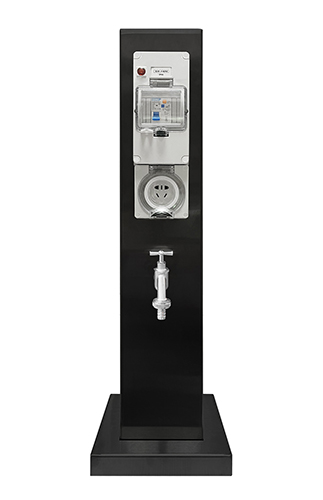

| Model | GRWE801515S | GRWE801515S-R | GRWE801515D | GRWE801515D-R |

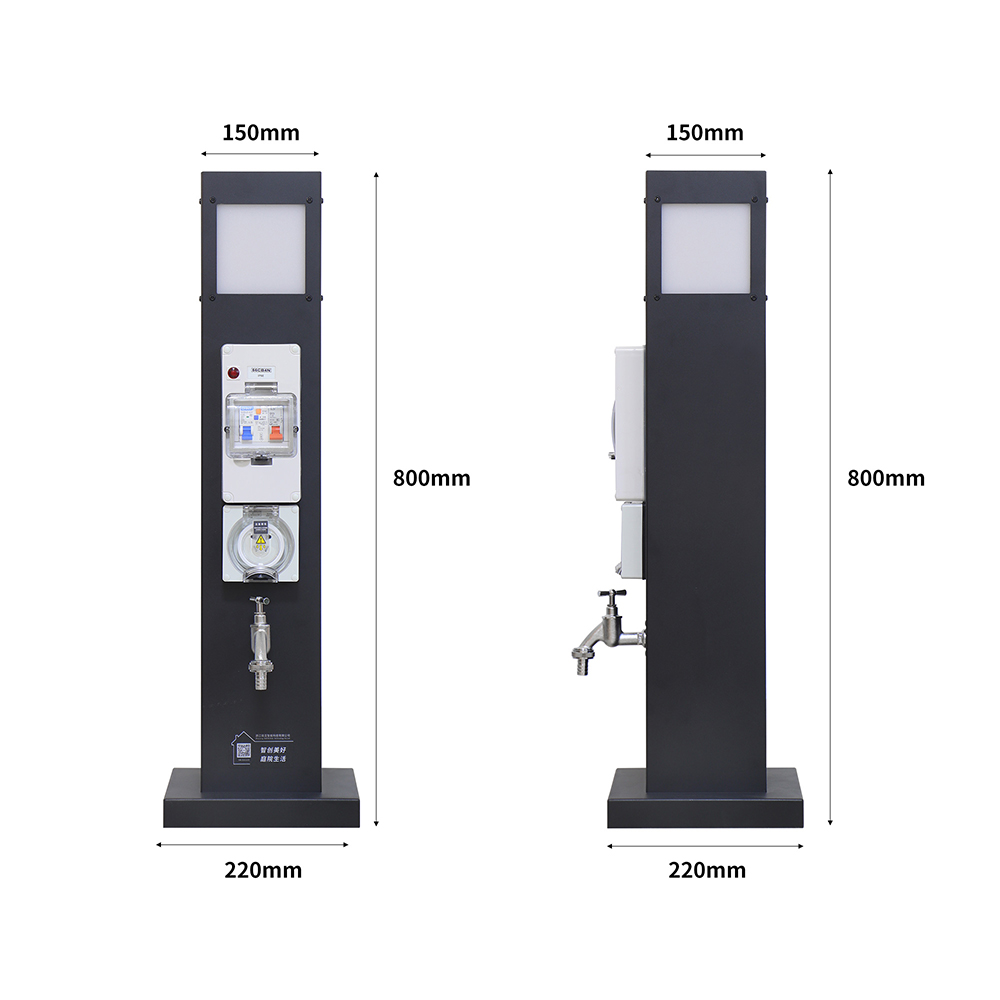

| Dimensions (H × L × W) | 800 × 150 × 150 mm | 800 × 150 × 150 mm | 800 × 150 × 150 mm | 800 × 150 × 150 mm |
| Sockets | 1 | 1 | 2 | 2 |
| Water Faucets | 1 | 1 | 2 | 2 |
| Electrical Protection | Yes | Yes | Yes | Yes |
| LED Light | — | Yes | — | Yes |
The primary differences between these four models lie in the socket count, faucet count, and the inclusion of integrated LED lighting (indicated by the ‘-R’ suffix). These variations provide flexible configurations based on site requirements and lighting preferences while maintaining the same physical footprint.
The GRWE801515 Series can be customized to meet the requirements of different outdoor landscape projects. Customization options include:
| Product Series | GRWE801515 Series |
|---|---|
| Material | 304 Stainless Steel |
| Installation Type | Floor Mounted / Ground Mounted |
| Water Supply Method | Integrated Water Faucet |
| Power Supply Method | Integrated Sockets |
| Safety Protection | Overload, Short-Circuit, and Leakage Protection |
| Lighting | Integrated LED Lighting |
| Color | Black (Custom Colors Available) |
| Application | Outdoor Utility Distribution |
| Customization | Available |
JIYA team can help you select the right product based on your site requirements.
