GRWE80/GRWE100 Marine Water and Power Pedestals

Name: GRWE80/GRWE100 Marine Water and Power Pedestals
Brand: JIYA
SKU: grwe80-grwe100-series-water-and-power-pedestals-marina

Integrated utility distribution units designed for docks, yachts, and marinas equipped with shore power and fresh water supply.

The GRWE80/GRWE100 Series is a 304 stainless steel shore power and water pedestal, featuring separated water and electrical paths and 30 mA earth leakage protection.

The series is also supplied in a marine configuration for berths, where each unit provides shore power and a fresh water connection. This marine build is specified around three conditions that a standard RV pitch does not face: salt corrosion on the enclosure and fixings, structural stress from floating or fixed docks, and the need for service access while berths remain occupied—rather than waiting until the end of the season.

All-Weather Protection: Long-term salt spray test.
Premium Materials: Standard 304, optional 316 for high-chloride areas.
Easy Maintenance: Dock-mounted design allowing service access without disrupting berth use.
Safe Layout: Water path isolated below the electrical compartment.

Key Features

Shore power and water at one berth

A vessel connects through the pedestal rather than running a cord along the dock. The water tap sits at the same point, so the crew finds both connections together and the walkway stays clear.

Corrosion control for a salt environment

The body is 304 stainless steel as standard. For berths with constant spray or prevailing onshore wind, 316 stainless steel is available, since its molybdenum content gives better resistance to chloride attack. Fixings matter as much as the body on a dock, where salt settles and stays damp.

Water and electrical sections kept apart

Water and electricity share an enclosure but not a compartment. The water path runs below the electrical section, so a weeping fitting does not sit above live parts. On a combined marina unit this is a design decision worth checking rather than assuming.

Dock mounting and in-season access

The unit is arranged to be fixed to a dock structure and reached for service without dismantling the surrounding installation. On a working marina the constraint is rarely the electrical design. It is whether a technician can reach the terminations without closing the berth.

Specification
Model	GRWE802020D	GRWE802520D	GRWE803020D
Dimensions (H × L × W)	800 × 200 × 200 mm	800 × 250 × 200 mm	800 × 300 × 200 mm
Sockets	2	4	2
Water Faucets	2	2	2
Electrical Protection	Yes	Included	Yes

Specification
Model	GRWE1002020D-R	GRWE1002520D-R	GRWE1003020D-R

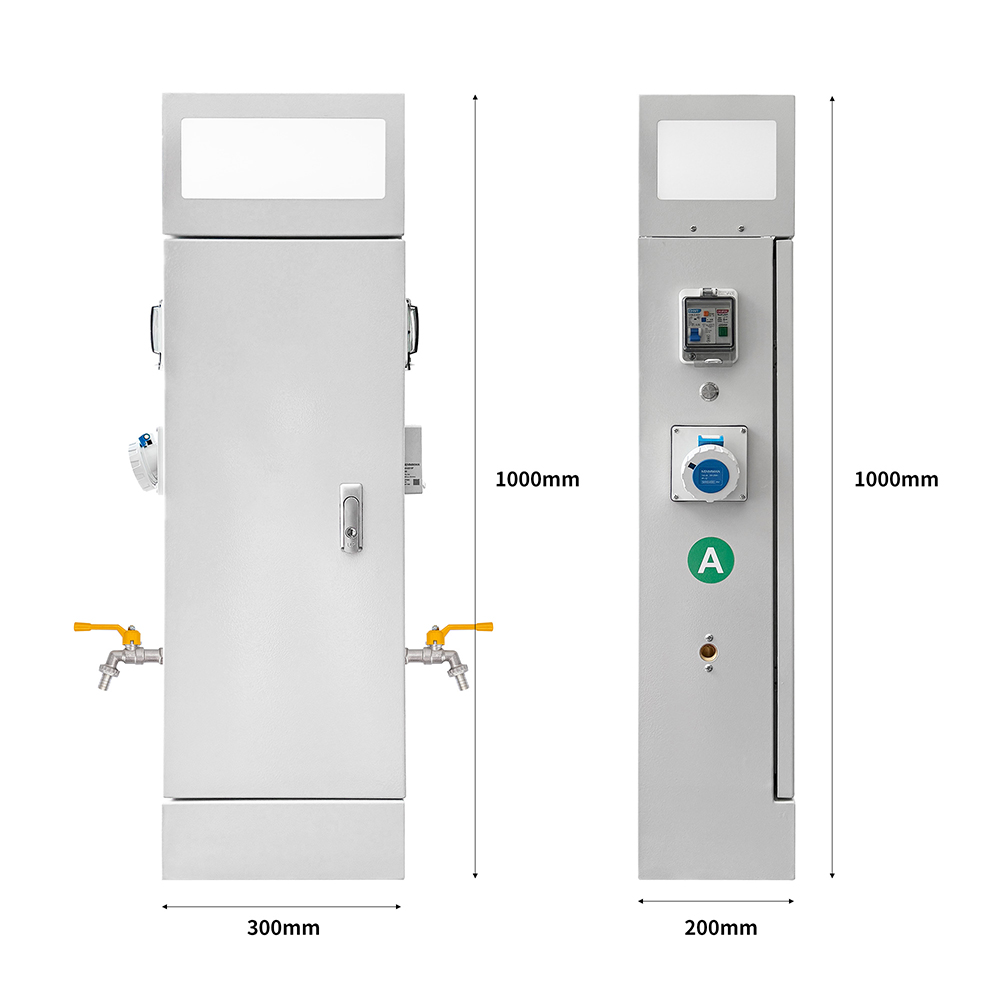

Dimensions (H × W × D)	1000 × 200 × 200 mm	1000 × 250 × 200 mm	1000 × 300 × 200 mm
Sockets	2	2	2
Water Faucets	2	2	2
Safety Protection	Yes	Yes	Yes
LED Light	Yes	Yes	Yes

The main differences between these series and models are the overall height (800mm for the GRWE80 series vs. 1000mm for the GRWE100 series), enclosure width, socket quantities, and the addition of integrated LED lighting (available on the GRWE100 series). These options provide project managers with flexible sizing and component layout choices to match specific site requirements.

Technical Specifications

Specification	Details
Product Series	GRWE80/GRWE100 Series
Material	304 Stainless Steel
Installation Type	Floor Mounted / Ground Mounted
Water Supply Method	Integrated Water Faucet
Power Supply Method	Integrated Sockets
Safety Protection	Overload, Short-Circuit, and Leakage Protection
Lighting	Integrated LED Lighting (GRWE100 Series only)
Color	White (Custom Colors Available)
Application	Outdoor Utility Distribution
Customization	Available
